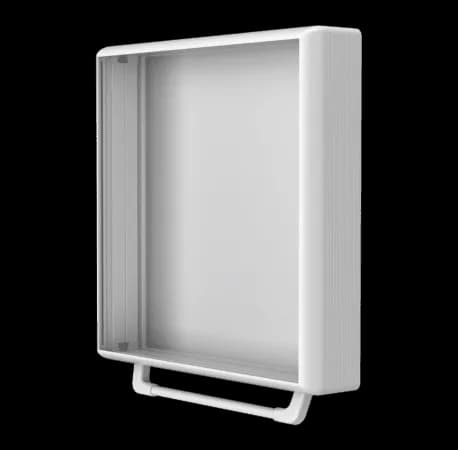

XX-PS.090.01

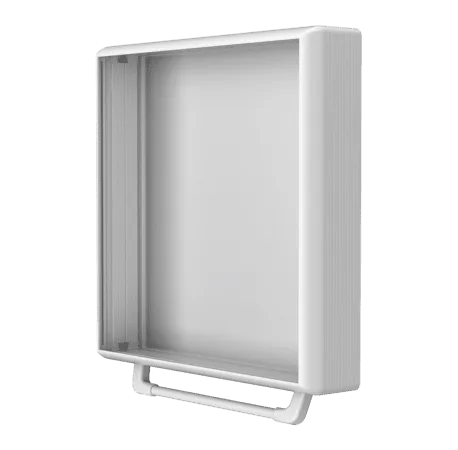

It is compatible with holding and protecting information elements such as PC and operating panel in industrial machines and systems. The durable structure surrounding the technical elements of the machines is produced by making intensified checks against any damage. The enclosure panel has 90 mm of usable space. A handle is added to the enclosure panel for ease of use; single handle or double handles options are available. The standard position of the handle for this product will be placed at the bottom side of the panel. The product specifications can be customized according to the client requests.
Weight
100000 gr.
Material
Aluminum 6000
Color
1 level, 5 color option
Package Dimensions
650x710x1200 cm
HS Code
7606.99.90.19
Warranty
5 years
TECHNICAL DATASHEET Additional Information
Material Composition
Aluminum 6000
Dimensions
650x710x1200 cm
Operating Weight
100000 gr.
Primary Use Case
Machine Building / Automation / HMI operator stations
Operating Temperature
–40°C to +70°C
Protection Rating
–IP65 (DIN EN 60529)
Earthing
Yes, integrated solution
RoHS Compliance
RoHS EU Directive 2011/65/EU
REACH Compliance
REACH Regulation 1907/2006/EC
Certification
IEC 60529; (EG) No. 765/2008; (EU) 2023/956
Rated Voltage
Mechanical (not subject to electrical certification)
Faqs
Support arm systems are designed to safely mount and position HMI panels, operator interfaces,
keyboards, and control devices. They enable ergonomic operation, flexible movement, and stable
positioning in industrial environments.
What weight loads can the different series handle?
TA050 Series: Up to ~50 kg TA080 Series: Up to ~80 kg
TA130 Series: Up to ~130 kg Load verification available
on request.
TA050 Series: Up to ~50 kg TA080 Series: Up to ~80 kg
TA130 Series: Up to ~130 kg Load verification available
on request.
Yes. All XINDUX support arm systems and panels are IP65 certified, including joints and couplings.
Yes. Our arms use a fully cable-free grounding system via integrated earthing screws in panel couplings and wall brackets. This eliminates the need for internal grounding wires and simplifies assembly.
Top mounting (vertical downfeed)
Bottom mounting (vertical upfeed)
Side mounting
Floor stands / kiosk systems
Bottom mounting (vertical upfeed)
Side mounting
Floor stands / kiosk systems
Standard lengths: 250 / 500 / 750 / 1000 / 1250 / 1500 / 2000 mm
Custom up to 4 meters possible.
We design custom housings, keyboards, joystick plates, branding modules.
Aluminum 6000
Standard RAL7035. Optional RAL9005 or any RAL on request.
STEP + 2D drawings available, including simplified multibody STEP Files.
Available as pre-assembled, partial kits, or individual components.
Stock: 1 week
Custom/Assembly: 2–4 weeks
Custom Panels: 4–6 weeks
Custom/Assembly: 2–4 weeks
Custom Panels: 4–6 weeks
Machine building, automation, packaging, CNC, medical, cleanroom, energy, process industry.
Damping profiles, reinforced joints, rubber mounts, stabilization options.
Panel weight, reach, mounting, mobility, environment. We assist with full design.
