Question 1

What is included in the XINDUX HMI panel enclosure portfolio?

Accepted Answer

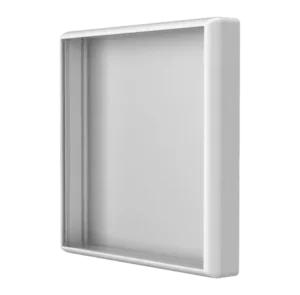

The XX-PS portfolio provides aluminium operator enclosures for displays, industrial PCs and control components. Configurations include different installation depths, handle arrangements, keyboard combinations and depth extensions. Selecting these features together lets the enclosure accommodate the electrical equipment while also providing the mechanical interface and operating layout required by the machine.

Question 2

Which basic enclosure depths can I choose?

Accepted Answer

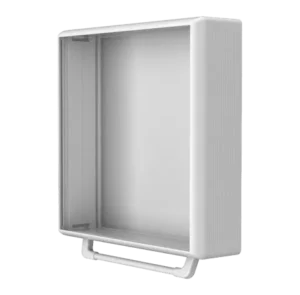

The main depth families are 60, 90, 120 and 150 mm. Select the installation space around the deepest component and its connectors, then allow for wiring and service access. A shallow enclosure can suit a compact HMI, while a deeper version may avoid cramped connections where additional control equipment or a larger industrial PC is installed.

Question 3

What does the additional 90 mm depth section provide?

Accepted Answer

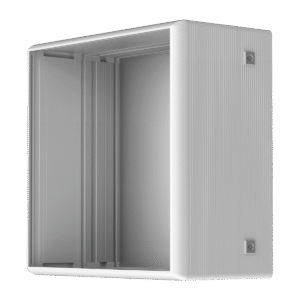

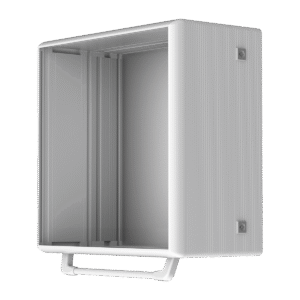

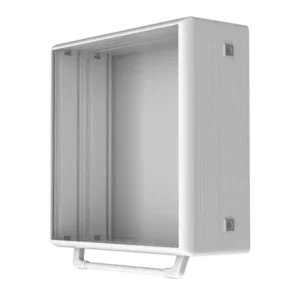

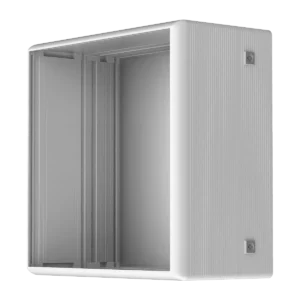

Selected configurations add a 90 mm section to the base enclosure, producing nominal combined depths of 150, 180, 210 or 240 mm. The sections are joined through the corresponding connection system. This provides another way to create internal space, but the available clearance and mounting interface should be checked on the selected assembly drawing.

Question 4

How do I decide whether a depth extension is worthwhile?

Accepted Answer

Compare the installed component depth with connector projections, cable bend radii and the space needed to reach terminals. An extension can make assembly and servicing easier where a basic enclosure is too shallow. Include its weight and the changed centre of gravity in support arm selection so the extra internal space is considered mechanically as well as electrically.

Question 5

Are standard front sizes available?

Accepted Answer

The catalogue lists a range of installation areas, including 250 x 250, 300 x 400, 400 x 500 and 600 x 600 mm. Availability depends on the enclosure configuration. Use the actual device cut-out and fixing pattern to select the front, since the installation area, external enclosure size and visible display size describe different dimensions.

Question 6

Can we order a non-standard enclosure size?

Accepted Answer

Yes. Non-standard panel sizes can be reviewed against the required equipment layout and supporting interface. Provide the usable front area, depth requirement, cut-outs and complete equipment weight. A size matched to the application can reduce unused space while retaining sufficient clearance for assembly, cable routing and future service work.

Question 7

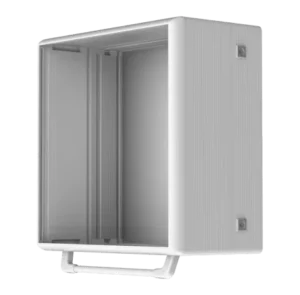

What is the difference between the handle configurations?

Accepted Answer

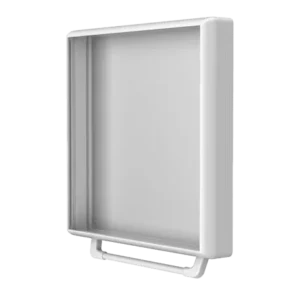

The reviewed .01 variants provide an underside grab handle, while .02 variants provide handles on both sides. Other versions and keyboard combinations have their own arrangements. Choose the grip location around the operator's movement and access to controls; a suitable handle helps reposition the enclosure without pulling on the display bezel or connected cables.

Question 8

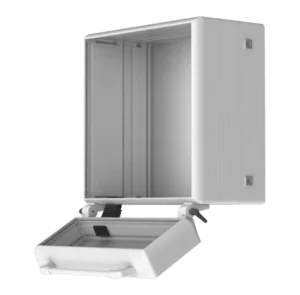

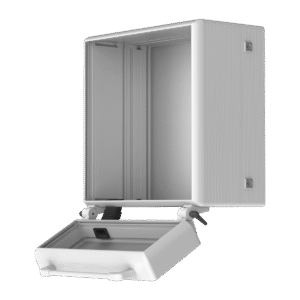

What do the -K enclosure variants add?

Accepted Answer

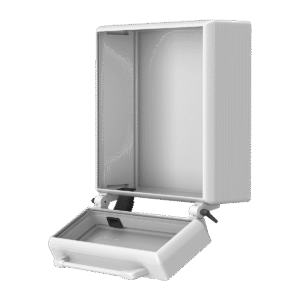

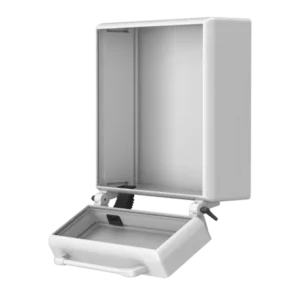

The -K versions integrate a keyboard arrangement below the operator panel. Their descriptions specify a cable passage between the screen and keyboard areas, with side supports guiding the movable keyboard unit. This provides a coordinated display and input station, reducing the need to design a separate keyboard mounting structure around the enclosure.

Question 9

Can the front plate be supplied machined for our display and controls?

Accepted Answer

Processed front sheets are part of the panel offering. Supply the equipment cut-outs, mounting holes, tolerances and required positions for operator devices. Agreeing these details before manufacture can reduce workshop machining and improve repeatability, particularly where the same operator layout is supplied across a series of machines.

Question 10

Which front-sheet thickness options are listed?

Accepted Answer

The catalogue includes 2 mm and 3 mm front sheets in processed and unprocessed versions. Select the thickness with the device clamping range, cut-out pattern and required stiffness in mind. Large openings and heavy mounted components may require additional design consideration; specifying the complete front assembly helps avoid a plate that fits dimensionally but lacks adequate support.

Question 11

Can an XX-PS enclosure accept equipment from different HMI manufacturers?

Accepted Answer

The mechanical enclosure can be configured around equipment with suitable dimensions and fixing requirements. Manufacturer name alone does not establish compatibility: check the cut-out, clamping depth, rear clearance, connector orientation and thermal requirements. This approach supports a consistent enclosure concept even when an OEM changes its preferred display or industrial PC.

Question 12

Do all support arm couplings fit every XX-PS enclosure?

Accepted Answer

No. The catalogue contains a compatibility matrix, and some couplings are restricted to particular panel families or frame dimensions. Check the chosen enclosure depth, mounting interface and adapter together. Resolving the connection during enclosure selection avoids a finished front assembly being paired with an unsuitable support arm interface.

Question 13

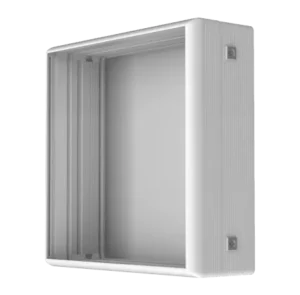

Are wall-mounted HMI enclosure arrangements possible?

Accepted Answer

The catalogue includes wall and machine mounting examples for the XX-PS060 family. The installation needs sufficient clearance for cable entry, rear access and any opening cover. This arrangement can provide a compact fixed operator interface where repositioning is unnecessary, while retaining a panel format related to the wider enclosure portfolio.

Question 14

How is service access provided?

Accepted Answer

The catalogue shows fixed rear plates and hinged rear arrangements, with locking options in the panel tables. Select access around the expected maintenance task and the space behind the station. A hinged solution may simplify repeated access, while the final layout must still allow the cover to open without loading cables or striking the support structure.

Question 15

What determines the ingress protection of the populated enclosure?

Accepted Answer

The completed enclosure depends on its housing seals, front-mounted devices, rear closure, cable entries and arm connection. Suitable configurations can target IP65, provided these interfaces are specified and assembled accordingly. Planning protection at the populated-enclosure level helps preserve the required performance after the display, buttons and connectors have been fitted.

Question 16

How should heat dissipation be assessed?

Accepted Answer

Add the heat losses of the installed equipment and compare the expected internal temperature with each device's operating limits. Ambient temperature, enclosure size, solar exposure and ventilation arrangements all matter. Resolving the thermal concept before finalising the housing can prevent overheating or an unplanned opening that changes the intended ingress protection.

Question 17

How are bonding and EMC requirements incorporated?

Accepted Answer

Plan the protective bonding of accessible metal parts and the installed equipment, then specify any shield termination, EMC cable glands or conductive sealing needed by the application. An aluminium enclosure alone does not establish EMC performance. Coordinating these interfaces with the machine's electrical design reduces remedial wiring and supports a more consistent finished assembly.

Question 18

How does enclosure configuration affect support arm selection?

Accepted Answer

Depth extensions, internal components, handles and keyboards all add mass or change its position relative to the coupling. Use the fully equipped enclosure in the arm calculation, including the mounting adapter. Considering these items together helps maintain a stable operating position and avoids upgrading the arm after the panel has already been built.

Question 19

Can enclosures be supplied as part of a repeatable OEM assembly?

Accepted Answer

Yes. A project can define the enclosure, front-sheet machining, handles, connections and agreed assembly scope as a controlled configuration. This supports repeat ordering against one documented layout and can reduce incoming parts handling. Device installation, wiring and testing should be stated explicitly so the supplied assembly matches your production process.

Question 20

What information is needed for an HMI enclosure quotation?

Accepted Answer

Provide the device drawings, front layout, installation depth, rear connector clearance, preferred handle or keyboard arrangement and mounting interface. Include the populated weight, heat losses, protection requirement, finish and quantity. This lets the proposal address both the enclosure itself and the practical work required to turn it into a complete operator panel.
