Question 1

What is a XINDUX coupling tower used for?

Accepted Answer

A coupling tower provides a stationary vertical structure for mounting industrial controllers, PCs and operator panels through suitable interfaces. It also provides space for protected cable routing. This is useful where the operator station needs its own structural mounting position, particularly when the machine enclosure or nearby wall is unsuitable for the intended equipment arrangement.

Question 2

Which coupling tower sizes are available?

Accepted Answer

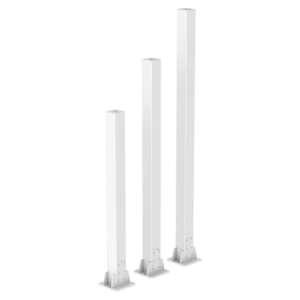

The catalogue lists 150 x 150 mm and 200 x 200 mm column sections, each in nominal heights of 2.0, 2.5 and 3.0 m. The current website lists the corresponding six XX-TW models. This range allows the vertical structure to be selected around the equipment layout, required connection height and installation space.

Question 3

How do I read the XX-TW model designation?

Accepted Answer

In the current range, XX-TW.150.200 identifies the 150 mm section family at 2,000 mm height; .250 and .300 identify 2,500 and 3,000 mm versions. The XX-TW.200 family follows the same height pattern. The model code describes the tower geometry, so the complete mounting and load requirements still need their own assessment.

Question 4

How do I choose between the 150 and 200 mm section families?

Accepted Answer

Consider the connected equipment, mounting interfaces, cable space, tower height and bending moment. The larger section may be relevant where the structural or routing requirements demand it, but the section designation is not a published payload rating. Reviewing the layout with these inputs helps select the appropriate tower without unnecessary size or unsupported capacity assumptions.

Question 5

How should I select the tower height?

Accepted Answer

Choose the height around the required connection positions, operator sightline and any attached arm or panel geometry. Check overhead clearance, service access and the path of cables entering the tower. The tower's overall height does not necessarily equal the screen height, so assess the complete operator station rather than choosing from the column length alone.

Question 6

What is the difference between a coupling tower and a kiosk?

Accepted Answer

A coupling tower is a fixed vertical mounting structure, while the kiosk range includes bases and cabinet arrangements, including mobile versions. A tower suits an installation that needs a defined structural connection height and stationary cable route. A kiosk may be more suitable when the station requires mobility or enclosed accommodation for a computer and accessories.

Question 7

Can a support arm be connected to a coupling tower?

Accepted Answer

A suitable arm connection can be assessed as part of the tower assembly. The connection must match mechanically, and the structure must withstand the bending and torsional loads created by the arm's reach and movement. Specifying tower, connection and arm together allows the operator's working area to be considered alongside structural and cable-routing requirements.

Question 8

Which HMI enclosures can be mounted on the tower system?

Accepted Answer

Selection depends on the panel connection or support arm interface used between the enclosure and tower. Check the enclosure dimensions, populated weight, coupling and cable entry together. Using the XX-PS portfolio as part of a defined assembly can simplify the operator-station design, while each interface still needs to match the selected configuration.

Question 9

How is the permissible tower load determined?

Accepted Answer

Assess the full assembly, including vertical forces, equipment offsets, connected arms, horizontal forces and torsion. Tower height, connection design and anchoring also affect the result. The tower's own product weight is not its allowable payload. Providing a layout with mass and centre-of-gravity information supports a more meaningful assessment than a single equipment-weight figure.

Question 10

Why is arm reach important when a panel is attached to a tower?

Accepted Answer

An offset load creates a bending moment at the tower and its attachment. Increasing the horizontal reach increases that moment even when the panel weight stays unchanged. Include the most demanding operating position and the weight of the arm itself so the tower connection can be assessed for the actual installation.

Question 11

What should be checked at the tower mounting surface?

Accepted Answer

The floor or supporting structure must accept the loads transferred through the base connection. Review the base geometry, fasteners, anchoring depth where applicable, substrate and access for installation. Coordinating these details early can prevent site work or changes to the base arrangement after the tower and operator equipment have been delivered.

Question 12

How is the column assembled to its connecting components?

Accepted Answer

The product descriptions refer to specified connectors and grub screws securing the profile. Follow the assembly drawing and tightening instructions for the actual connection. Correct engagement and fastening are essential to the intended load path, and a documented assembly procedure supports consistent installation when several towers are supplied for the same machine or production line.

Question 13

How are cables routed through the tower?

Accepted Answer

The tower descriptions identify an opening at the top for routing cables into the column. Plan the route through the chosen connections and on to the HMI, including entry seals, strain relief and service access. Internal routing can reduce exposed cable runs around the station and protect the wiring from incidental contact.

Question 14

How should the required cable space be assessed?

Accepted Answer

Use the complete cable list and check connector dimensions as well as bundle diameter. Allow for bend radii, installation access and any separation required by the electrical design. The narrowest opening or adapter may determine the practical capacity, so the tower section alone should not be used to judge whether a cable assembly will pass through.

Question 15

How is protective bonding included in the tower installation?

Accepted Answer

Define the bonding path between the tower, connecting hardware, mounted enclosure and the machine or site electrical installation. Use the specified connection points and verify continuity for the assembled arrangement. Planning this alongside the cable route makes the installation more straightforward and helps ensure that accessible metal parts are included in the intended bonding system.

Question 16

What determines the protection of the tower cable route?

Accepted Answer

Protection depends on the column openings, entry arrangement, covers and connections to the mounted equipment. An IP65 target should therefore be specified for the relevant completed assembly and interfaces. Matching the tower routing details to the enclosure and support system helps maintain a continuous protected path rather than leaving an exposed transition between components.

Question 17

Can one tower support more than one device?

Accepted Answer

A layout with multiple devices can be reviewed, provided each attachment and the combined structural load are defined. Include the masses, offsets, operating forces and cable requirements of all connected equipment. This may consolidate an operator station, but the tower and base must be selected from the full arrangement rather than the largest device alone.

Question 18

Are custom heights, colours or connection arrangements possible?

Accepted Answer

The product descriptions offer review of project-specific dimensions, colours and configurations. The catalogue identifies RAL 7035 as the standard tower colour. Supply the required overall geometry and connection positions so a customised arrangement can be assessed for integration, transport and assembly as well as its visual match to the machine.

Question 19

What should be considered for delivery and installation?

Accepted Answer

Check access routes, lifting and handling arrangements, available overhead space and the sequence for fitting equipment and cables. Taller tower configurations can influence transport and assembly planning even before the HMI is installed. Agreeing these details with the delivery scope can reduce handling work and make installation at the final location more predictable.

Question 20

What information is needed for a coupling tower quotation?

Accepted Answer

Provide the desired section and height if known, equipment weights and centres of gravity, attachment positions, arm reach and the mounting-surface details. Add the cable layout, protection requirement, finish and quantity. A complete sketch helps XINDUX assess the tower, connections and operator equipment as one assembly and identify the necessary scope of supply.
