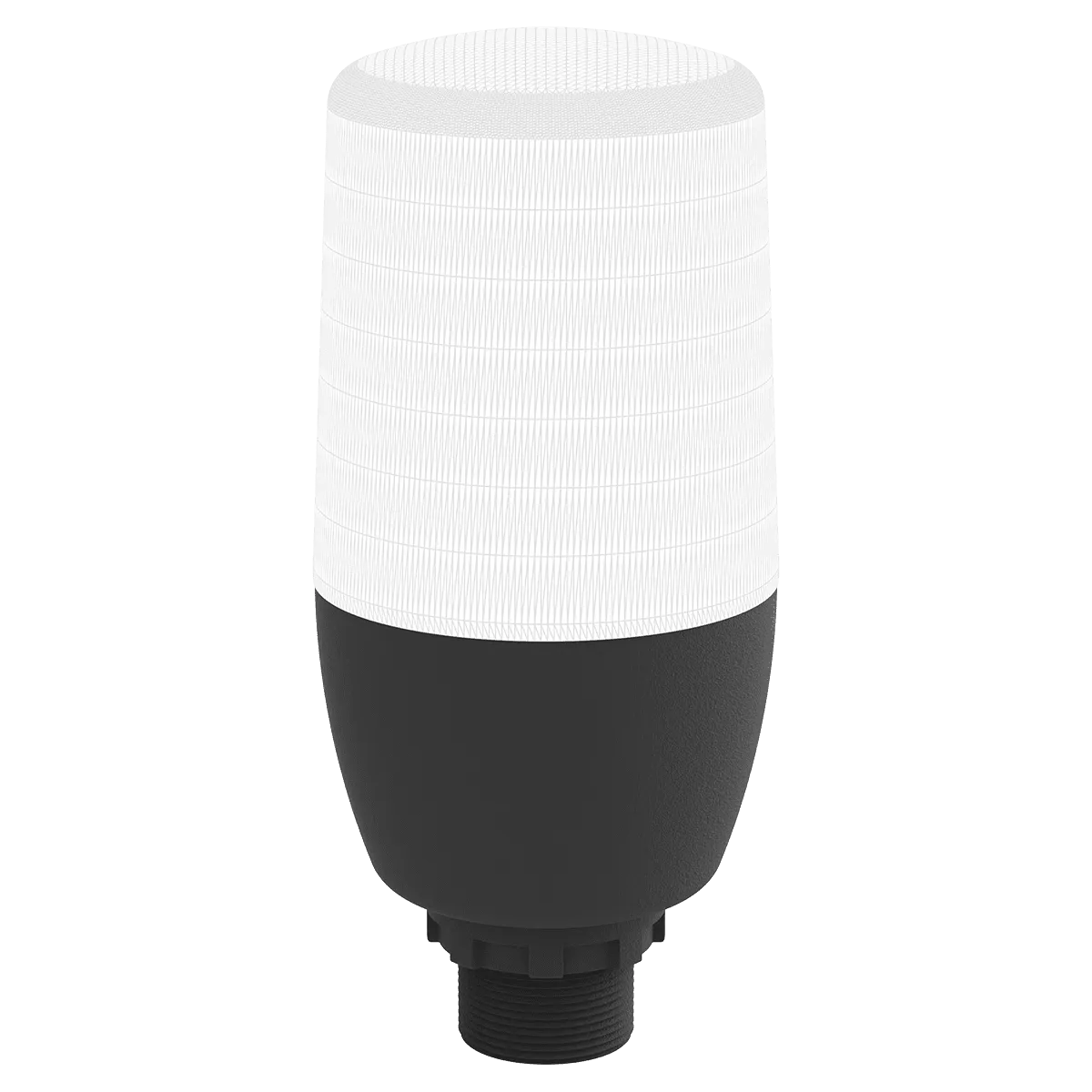

XX-WL02 – Warning Lamp (3 Layer / 3 Color)
XINDUX Warning Lamps provide clear visual machine status indication and are designed for integration into industrial operator environments, including support arm systems and control stations. The series includes compact M22-thread models for fast installation and reliable signaling in demanding conditions.
Weight
700 g
Material
LED
Colour Concep
3 layer / 3 color signaling
Dimensions
122mm x 55mm (HxD), Light Height 65mm, Thread M22
HS Code
8531.80.70.90
Warranty
2 years
TECHNICAL DATASHEET Additional Information
Material Composition
Aluminum 6000
Package Size
140 x 70 x 70 mm
Operating Weight
700 g
Thread interface
M22 x 1.5
Electrical life
10,000 Hours
Insulation voltage (Ui)
300 V
Primary Use Case
Machine Building / Automation / HMI operator stations
Operating Temperature
–40°C to +70°C
Protection Class
IP65
Frequency
50 Hz
Standards
TS EN 60947-1, TS EN 60947-5-1, TS EN 60947-5-1/A1
Wiring reference
+24 VDC control lines with dedicated -24 VDC return; buzzer line available
Earthing
Yes, integrated solution
RoHS Compliance
RoHS EU Directive 2011/65/EU
REACH Compliance
REACH Regulation 1907/2006/EC
Certification
IEC 60529; (EG) No. 765/2008; (EU) 2023/956
FAQs
XX-WL01 is the 5-color signaling variant, while XX-WL02 is the 3-layer/3-color variant for simpler machine status logic.
Use XX-TAxxx.810 for XX-WL warning lamps. The .810 interface is intended for M22 warning lamp integration in XINDUX support arm setups.
XX-TAxxx.811 is an M18-thread interface intended for broader device options beyond standard XX-WL use cases, including applications that may go beyond the in-house standard solution.
Yes, with the correct interface module. Use the corresponding XX-TA050/080/130 mounting variant according to your arm series.
The datasheet wiring shows 24 VDC-based control wiring with a dedicated return line and separate signal lines.
Yes. Both datasheets include a dedicated buzzer wire in the wiring scheme.
Both models are specified as IP65 and for -25 C to +70 C operation.
Both models are specified with 122 mm overall height, 55 mm diameter, 65 mm light height, and 22 mm thread height, with M22 x 1.5 mounting thread.
The datasheets specify an electrical service life of 10,000 hours.
TS EN 60947-1, TS EN 60947-5-1, and TS EN 60947-5-1/A1.
