JOINT PARTS
XX-TA130.600

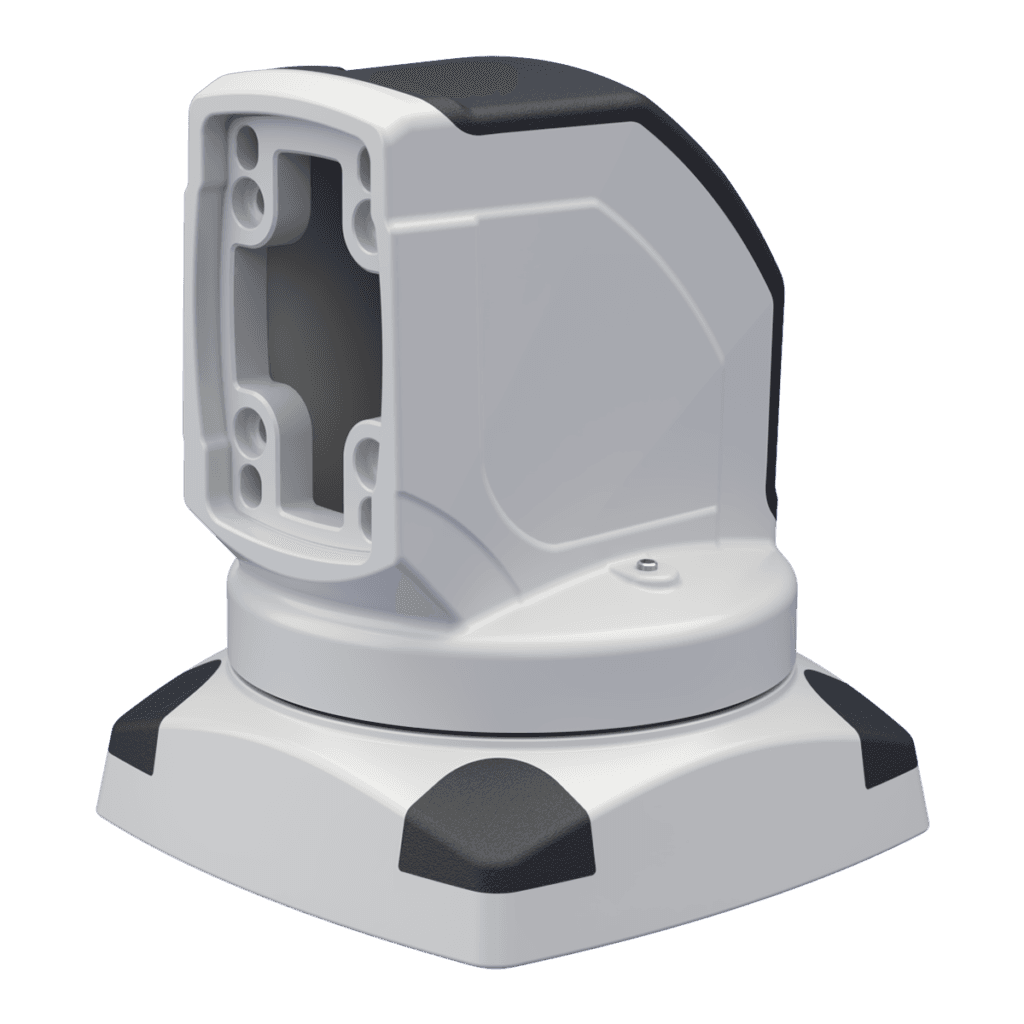

Request a quoteXX-TA130.600 Top Joint Rotatable Vertical is produced to provide a connection for a high position point. It allows a smooth rotation for the panel horizontally and provides a 315° movement mobility to the right or left. This product is designated for configurations wıth a heavy loads.
- Weight
- 5860 gr.
- Material
- Aluminum 6000
- Color
- RAL 7035
- Package Dimensions
- 210x240x210 mm
- HS Code
- 7606.99.90.19
- Warranty
- 5 years
TECHNICAL DATASHEETAdditional Information
- Material Composition
- Aluminum 6000
- Dimensions
- 210x240x210 mm
- Operating Weight
- 5860 gr.
- Primary Use Case
- Machine Building / Automation / HMI operator stations
- Operating Temperature
- –40°C to +70°C
- Protection Rating
- –IP65 (DIN EN 60529)
- Earthing
- Yes, integrated solution
- RoHS Compliance
- RoHS EU Directive 2011/65/EU
- REACH Compliance
- REACH Regulation 1907/2006/EC
- Certification
- IEC 60529; (EG) No. 765/2008; (EU) 2023/956
- Rated Voltage
- Mechanical (not subject to electrical certification)
Frequently Asked Questions
Support arm systems are designed to safely mount and position HMI panels, operator interfaces,
keyboards, and control devices. They enable ergonomic operation, flexible movement, and stable
positioning in industrial environments.
