XX-TA130.420

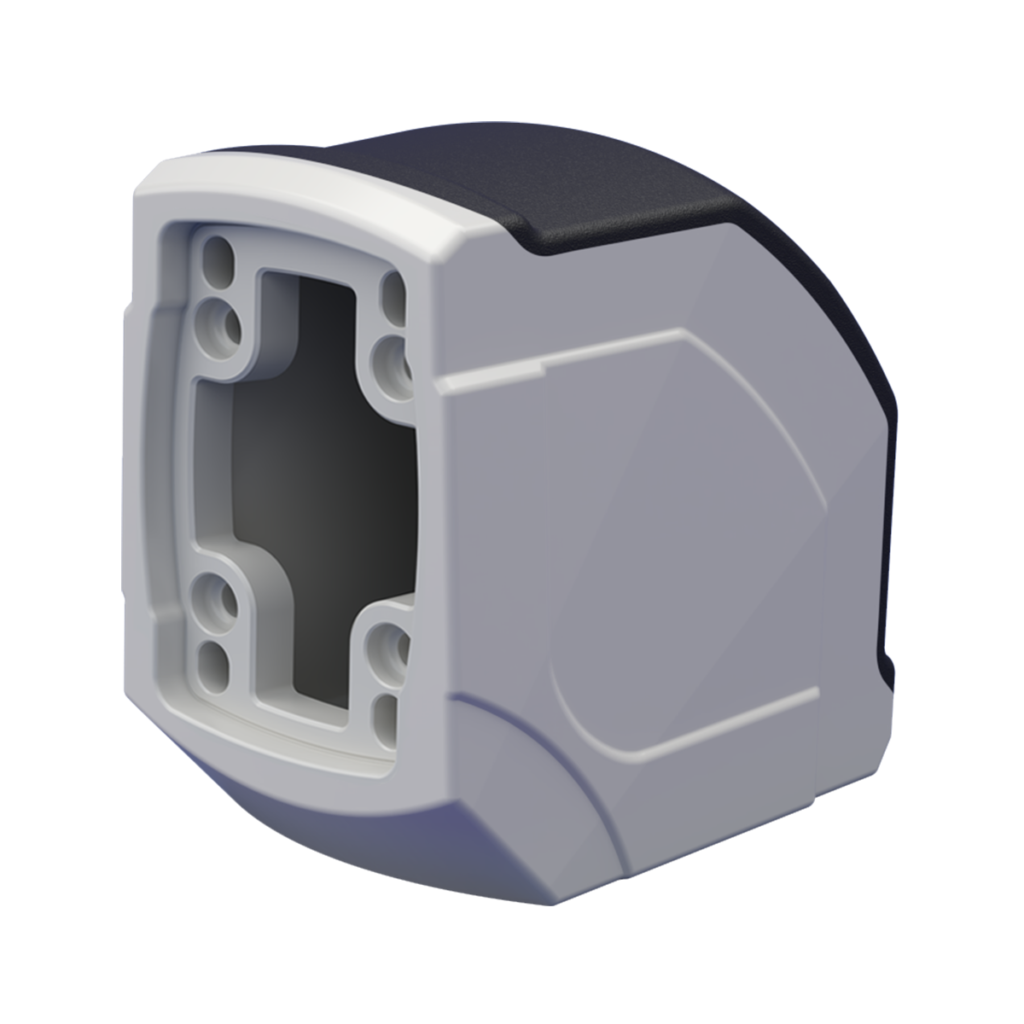

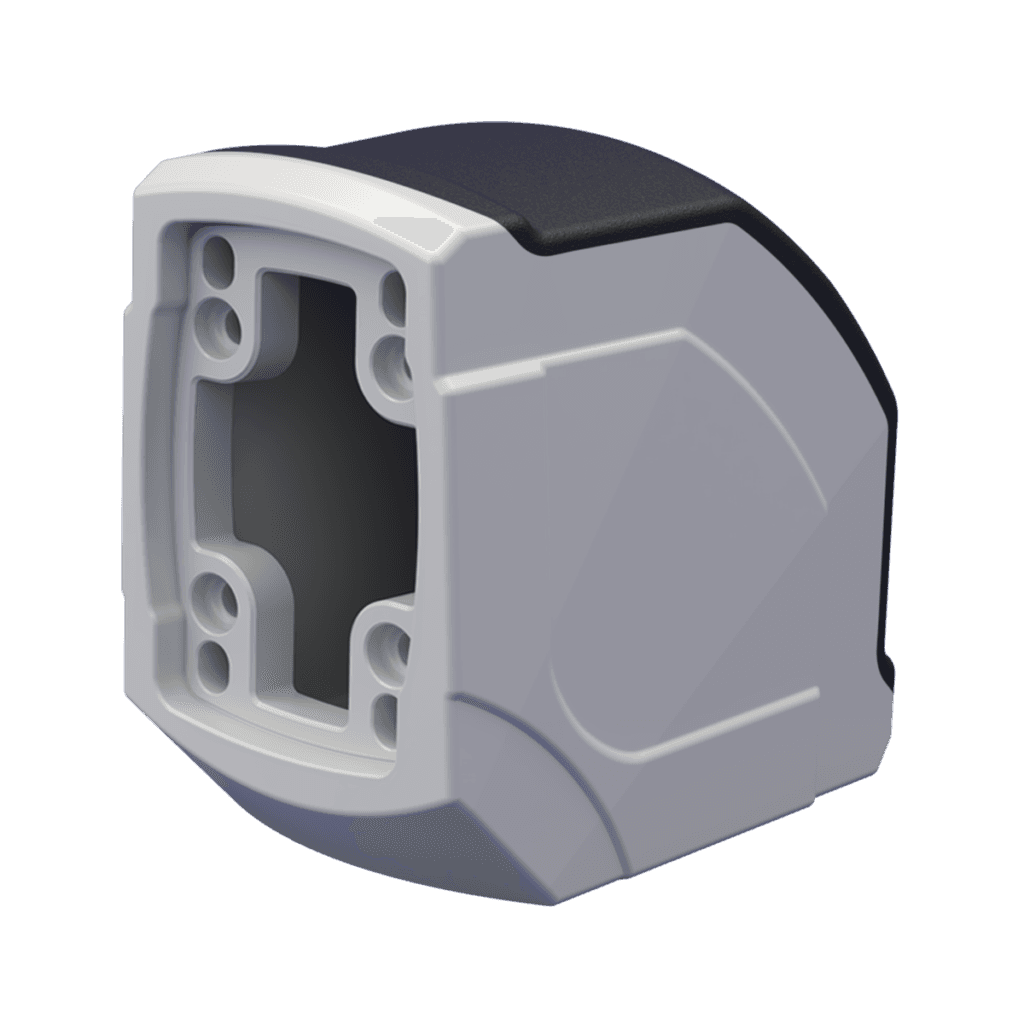

XX-TA130.420 Angle Piece 90° is a fixed corner module that connects the operator arms in horizontal and vertical axis. Based on the structural features and usage conditions, this product can be used for heavy loads panels positioned in long distance and without any compatibility issues.
Weight
1930 gr.
Material
Aluminum 6000
Color
7035
Package Dimensions
170x130x180 mm
HS Code
7606.99.90.19
Warranty
5 years
TECHNICAL DATASHEET Additional Information
Material Composition
Aluminum 6000
Dimensions
170x130x180 mm
Operating Weight
1930 gr.
Primary Use Case
Machine Building / Automation / HMI operator stations
Operating Temperature
–40°C to +70°C
Protection Rating
–IP65 (DIN EN 60529)
Earthing
Yes, integrated solution
RoHS Compliance
RoHS EU Directive 2011/65/EU
REACH Compliance
REACH Regulation 1907/2006/EC
Certification
IEC 60529; (EG) No. 765/2008; (EU) 2023/956
Rated Voltage
Mechanical (not subject to electrical certification)
Faqs
Support arm systems are designed to safely mount and position HMI panels, operator interfaces,
keyboards, and control devices. They enable ergonomic operation, flexible movement, and stable
positioning in industrial environments.
What weight loads can the different series handle?
TA050 Series: Up to ~50 kg TA080 Series: Up to ~80 kg
TA130 Series: Up to ~130 kg Load verification available
on request.
TA050 Series: Up to ~50 kg TA080 Series: Up to ~80 kg
TA130 Series: Up to ~130 kg Load verification available
on request.
Yes. All XINDUX support arm systems and panels are IP65 certified, including joints and couplings.
Yes. Our arms use a fully cable-free grounding system via integrated earthing screws in panel couplings and wall brackets. This eliminates the need for internal grounding wires and simplifies assembly.
Top mounting (vertical downfeed)
Bottom mounting (vertical upfeed)
Side mounting
Floor stands / kiosk systems
Bottom mounting (vertical upfeed)
Side mounting
Floor stands / kiosk systems
Standard lengths: 250 / 500 / 750 / 1000 / 1250 / 1500 / 2000 mm
Custom up to 4 meters possible.
We design custom housings, keyboards, joystick plates, branding modules.
Aluminum 6000
Standard RAL7035. Optional RAL9005 or any RAL on request.
STEP + 2D drawings available, including simplified multibody STEP Files.
Available as pre-assembled, partial kits, or individual components.
Stock: 1 week
Custom/Assembly: 2–4 weeks
Custom Panels: 4–6 weeks
Custom/Assembly: 2–4 weeks
Custom Panels: 4–6 weeks
Machine building, automation, packaging, CNC, medical, cleanroom, energy, process industry.
Damping profiles, reinforced joints, rubber mounts, stabilization options.
Panel weight, reach, mounting, mobility, environment. We assist with full design.
