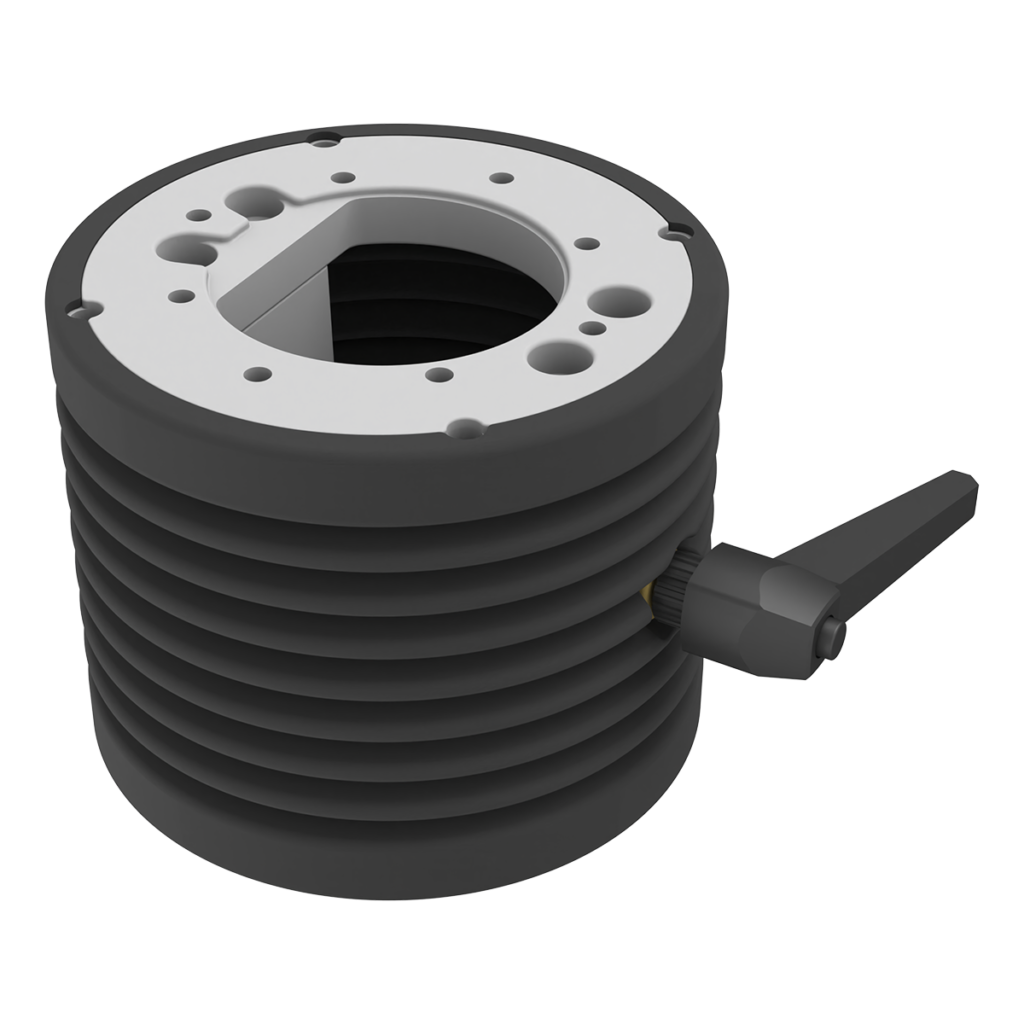

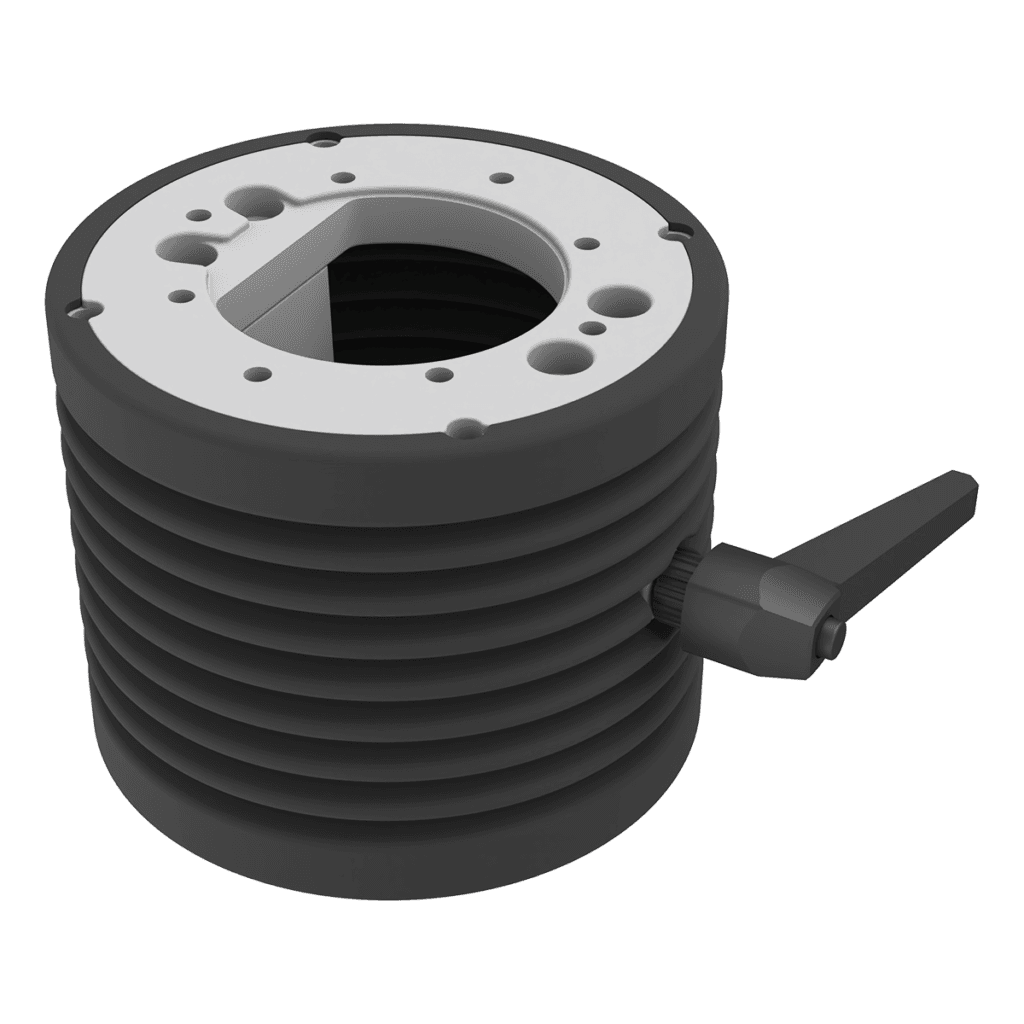

Ø130 mm Panel Tilting Adaptor Panel – With Bellows has been developed using high quality material, it is made of movable parts and is intended to be compatible with panels of different types and models. The module stands out with its up and down mobility and sealing feature.
ADAPTORS / JOINT PARTS
XX-TA080.840
Request a quote- Amount in Package
- 1
- Material
- Aluminum 6000
- Color
- RAL 7035 / (Bellow RAL 7016)
- Package Dimensions
- 140×155×110 mm
- HS Code
- 7606.99.90.19
- Warranty
- 5 years
TECHNICAL DATASHEETAdditional Information
- Material Composition
- Aluminum 6000
- Dimensions
- 140×155×110 mm
- Movement
- +30° / -40°
- Primary Use Case
- Machine Building / Automation / HMI operator stations
- Operating Temperature
- –40°C to +70°C
- Protection Rating
- –IP65 (DIN EN 60529)
- Earthing
- Yes, integrated solution
- RoHS Compliance
- RoHS EU Directive 2011/65/EU
- REACH Compliance
- REACH Regulation 1907/2006/EC
- Certification
- IEC 60529; (EG) No. 765/2008; (EU) 2023/956
- Rated Voltage
- Mechanical (not subject to electrical certification)
Frequently Asked Questions
Support arm systems are designed to safely mount and position HMI panels, operator interfaces,
keyboards, and control devices. They enable ergonomic operation, flexible movement, and stable
positioning in industrial environments.
