PANEL COUPLING
XX-TA080.826

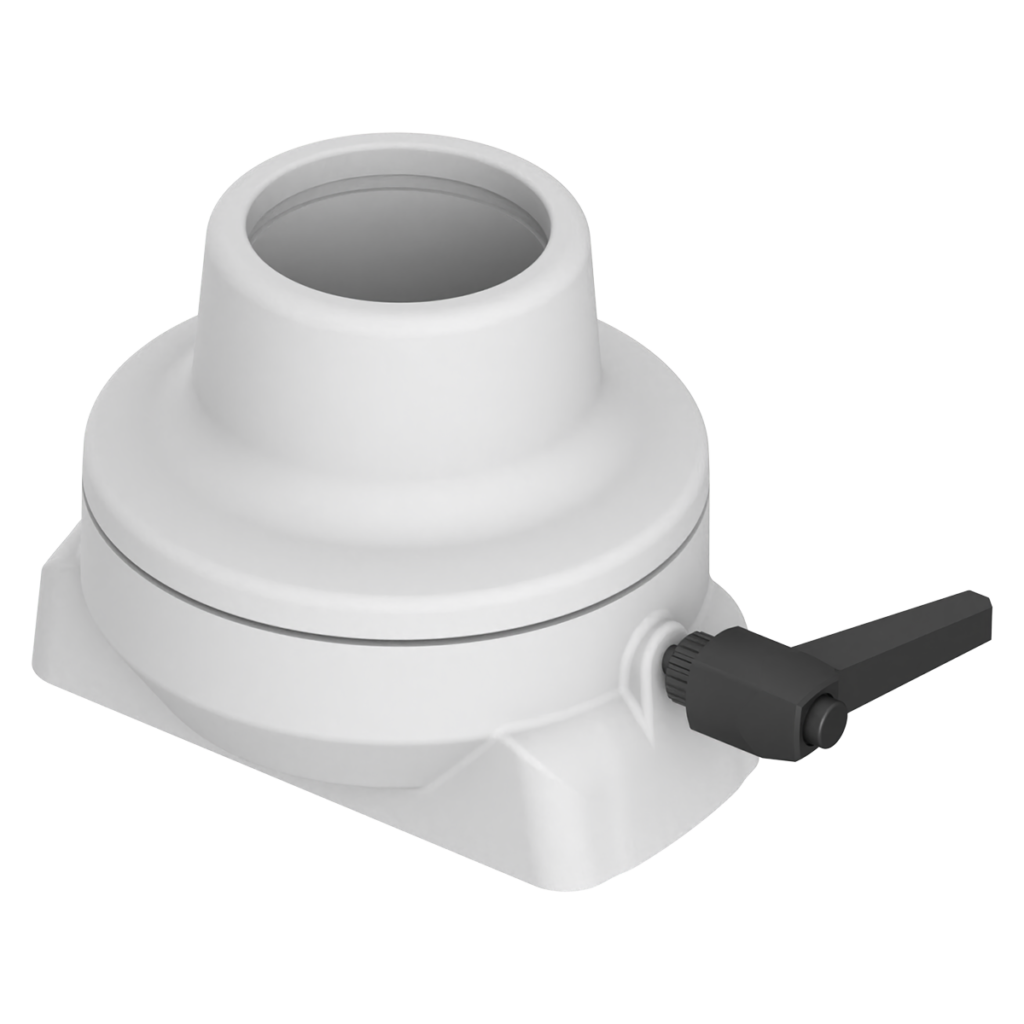

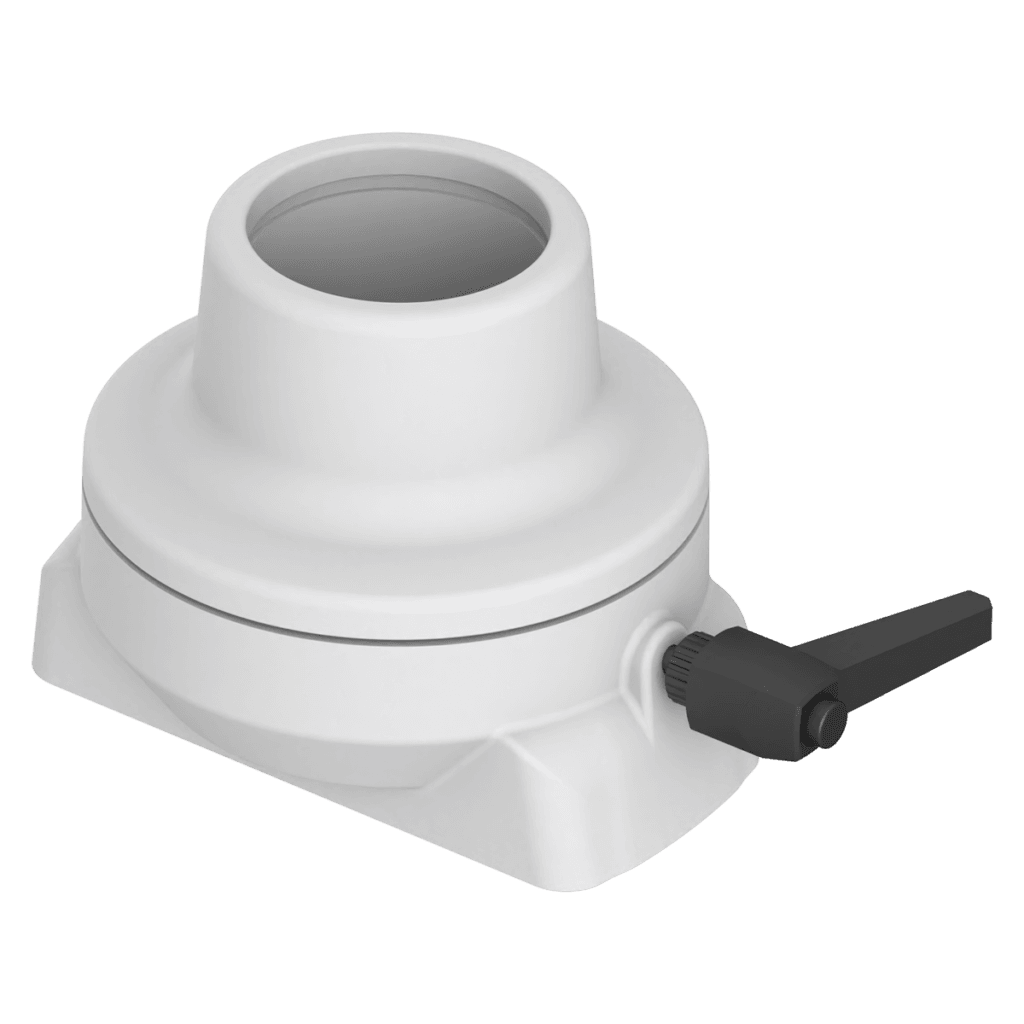

Request a quoteXX-TA080.826 Pipe Panel Adaptor 48 has an ergonomic structure used to connect the operating panels to the mechanical system. You can adjust the rotation angle at the desired position with the switch lever located on the side surface of the module.
- Weight
- 1930 gr.
- Material
- Aluminum 6000
- Color
- RAL7035
- Package Dimensions
- 140x120x110 mm
- HS Code
- 7606.99.90.19
- Warranty
- 5 years
TECHNICAL DATASHEETAdditional Information
- Material Composition
- Aluminum 6000
- Dimensions
- 140x120x110 mm
- Operating Weight
- 1930 gr.
- Primary Use Case
- Machine Building / Automation / HMI operator stations
- Operating Temperature
- –40°C to +70°C
- Protection Rating
- –IP65 (DIN EN 60529)
- Earthing
- Yes, integrated solution
- RoHS Compliance
- RoHS EU Directive 2011/65/EU
- REACH Compliance
- REACH Regulation 1907/2006/EC
- Certification
- IEC 60529; (EG) No. 765/2008; (EU) 2023/956
- Rated Voltage
- Mechanical (not subject to electrical certification)
Frequently Asked Questions
Support arm systems are designed to safely mount and position HMI panels, operator interfaces,
keyboards, and control devices. They enable ergonomic operation, flexible movement, and stable
positioning in industrial environments.
