ADAPTORS / JOINT PARTS
XX-TA080.825

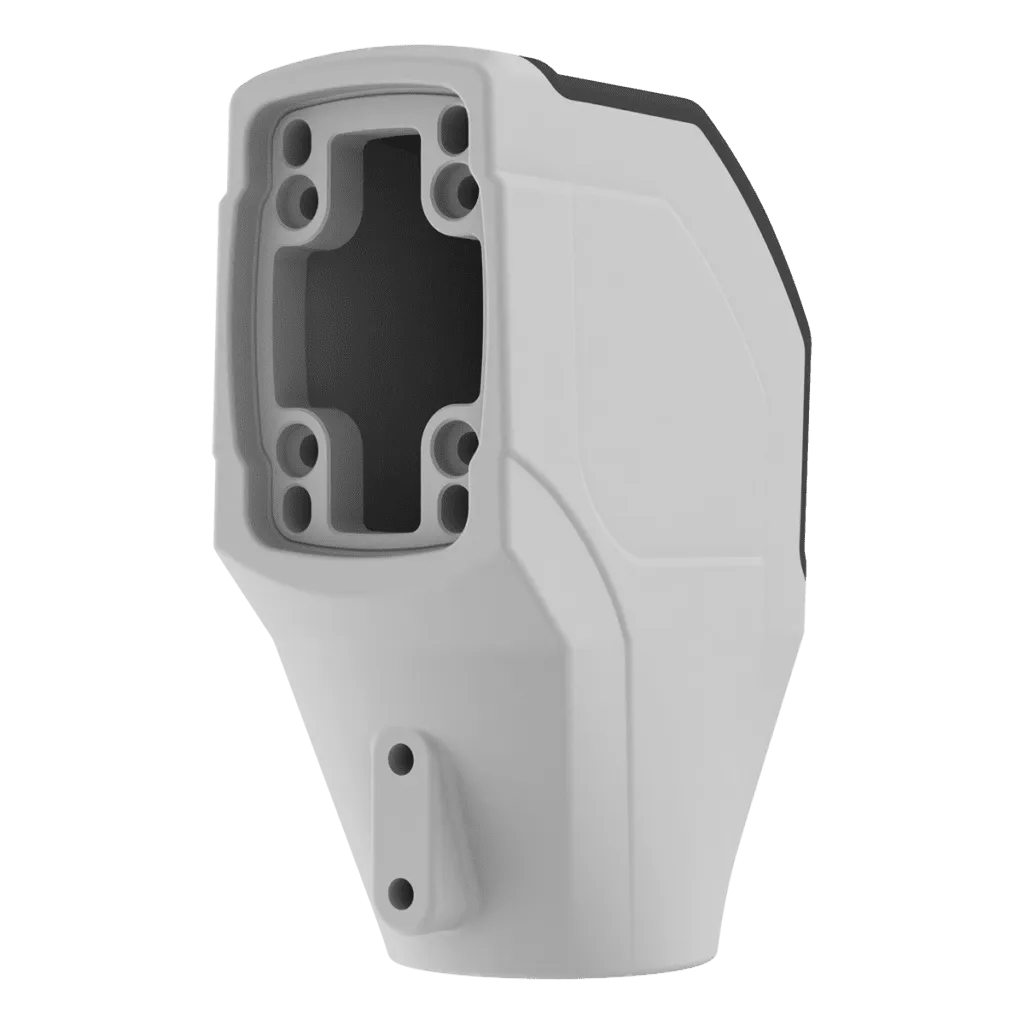

Request a quoteXX-TA080.825 is an 080-Ø48 Pipe Adaptor produced in accordance with operator systems and industrial machines belonging to different sectors, it is designed to fit all profile models. With its waterproof module, you can connect tube profiles of different weights and lengths and mount them on durable surfaces.
- Weight
- 1,300 g
- Material
- Aluminum 6000
- Colour
- RAL7035
- Package Dimensions
- 190x130x80 mm
- HS Code
- 7606.99.90.19
- Warranty
- 5 years
TECHNICAL DATASHEETAdditional Information
- Material Composition
- Aluminum 6000
- Dimensions
- 190x130x80 mm
- Operating Weight
- 1,300 g
- Primary Use Case
- Machine Building / Automation / HMI operator stations
- Operating Temperature
- –40°C to +70°C
- Protection Rating
- –IP65 (DIN EN 60529)
- Earthing
- Yes, integrated solution
- RoHS Compliance
- RoHS EU Directive 2011/65/EU
- REACH Compliance
- REACH Regulation 1907/2006/EC
- Certification
- IEC 60529; (EG) No. 765/2008; (EU) 2023/956
- Rated Voltage
- Mechanical (not subject to electrical certification)
Connection and supplied hardware
- Pipe interface – source designation
- 080/Ø48
- Pipe clamping screws
- 2 × M8 × 25
Frequently Asked Questions
Support arm systems are designed to safely mount and position HMI panels, operator interfaces,
keyboards, and control devices. They enable ergonomic operation, flexible movement, and stable
positioning in industrial environments.
