JOINT PARTS
XX-TA080.610

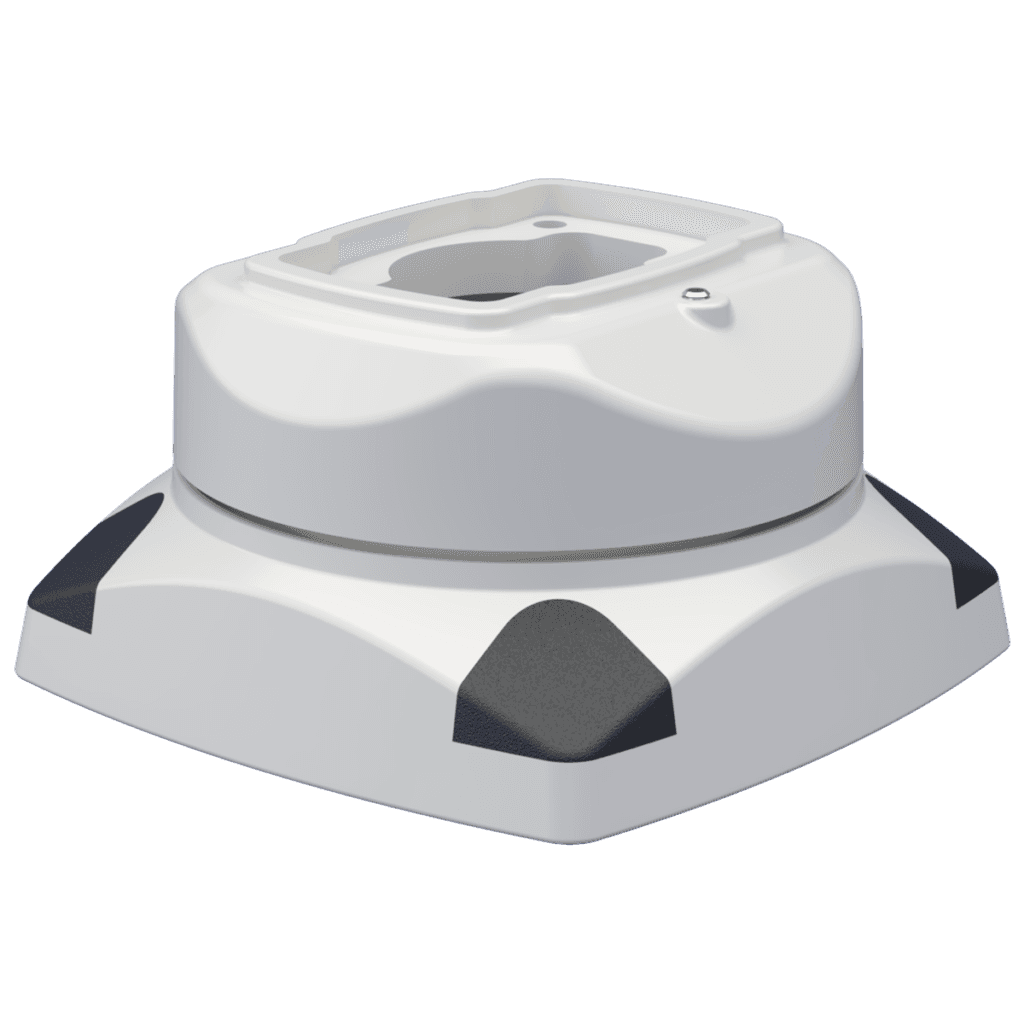

Request a quoteXX-TA080.610 is a rotatable top-mount coupling with a vertical outlet to the support-arm profile. The rotation range is 315°. The TA080 size defines the mechanical interface class; the permissible system load must be checked for the reach, joint arrangement and mounting position.
- Weight
- 2,600 g
- Material
- Aluminum 6000
- Colour
- RAL7035
- Package Dimensions
- 160x155x110 mm
- HS Code
- 7606.99.90.19
- Warranty
- 5 years
TECHNICAL DATASHEETAdditional Information
- Material Composition
- Aluminum 6000
- Dimensions
- 160x155x110 mm
- Operating Weight
- 2,600 g
- Primary Use Case
- Machine Building / Automation / HMI operator stations
- Operating Temperature
- –40°C to +70°C
- Protection Rating
- –IP65 (DIN EN 60529)
- Earthing
- Yes, integrated solution
- RoHS Compliance
- RoHS EU Directive 2011/65/EU
- REACH Compliance
- REACH Regulation 1907/2006/EC
- Certification
- IEC 60529; (EG) No. 765/2008; (EU) 2023/956
- Rated Voltage
- Mechanical (not subject to electrical certification)
Mounting interface and fastening
- Horizontal hole spacing
- 102 mm
- Vertical hole spacing
- 102 mm
- Mounting hole diameter
- 9 mm
- Cable opening diameter
- 46 mm
- Fastening
- 4 × M8; bolts not included
Frequently Asked Questions
Support arm systems are designed to safely mount and position HMI panels, operator interfaces,
keyboards, and control devices. They enable ergonomic operation, flexible movement, and stable
positioning in industrial environments.
