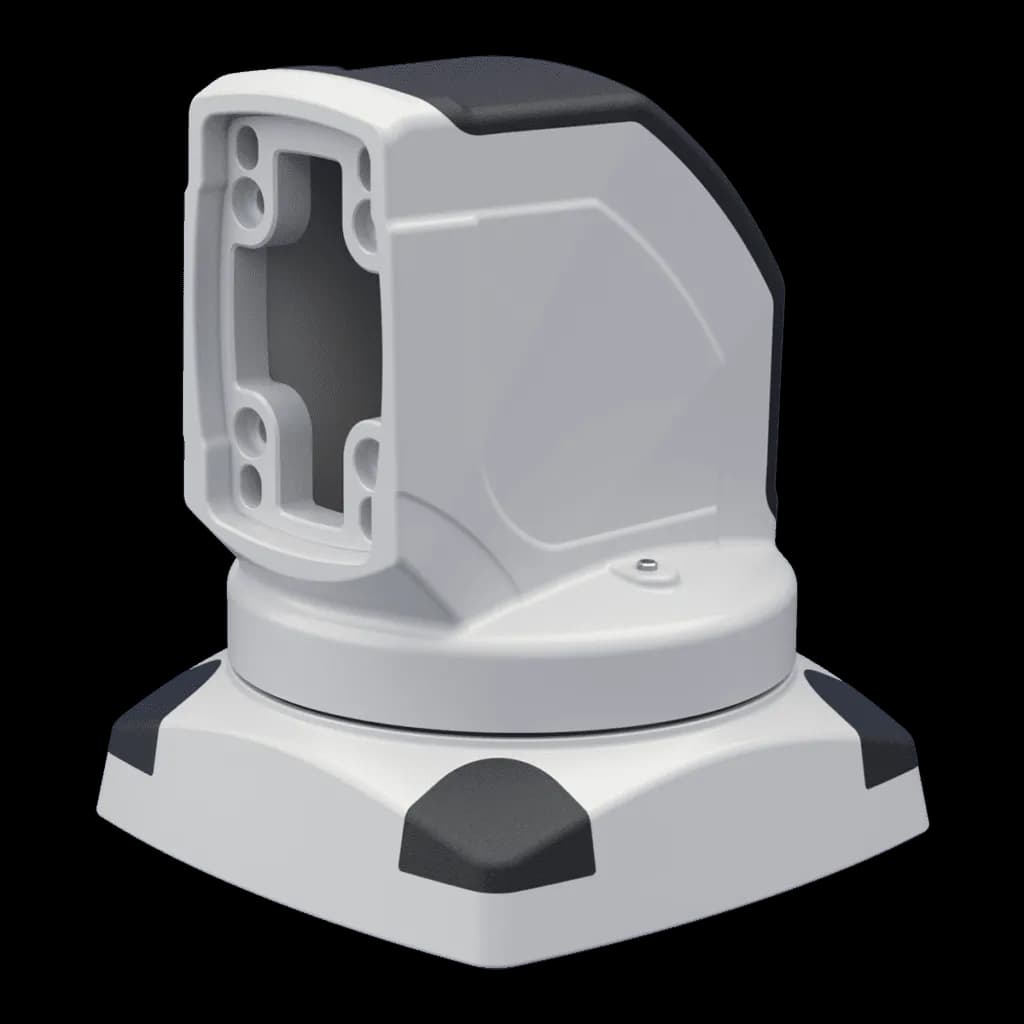

XX-TA080.600 Angle Joint Rotatable Top Mounting Horizotal is produced to provide a connection for a high position point. It allows a smooth rotation for the panel horizontally and provides a 315° movement mobility to the right or left. This product is designated for configurations with medium loads.
JOINT PARTS
XX-TA080.600
Request a quote- Weight
- 3,000 g
- Material
- Aluminum 6000
- Colour
- RAL7035
- Package Dimensions
- 165x155x190 mm
- HS Code
- 7606.99.90.19
- Warranty
- 5 years
Additional Information
- Material Composition
- Aluminum 6000
- Dimensions
- 165x155x190 mm
- Operating Weight
- 3,000 g
- Primary Use Case
- Machine Building / Automation / HMI operator stations
- Operating Temperature
- –40°C to +70°C
- Protection Rating
- –IP65 (DIN EN 60529)
- Earthing
- Yes, integrated solution
- RoHS Compliance
- RoHS EU Directive 2011/65/EU
- REACH Compliance
- REACH Regulation 1907/2006/EC
- Certification
- IEC 60529; (EG) No. 765/2008; (EU) 2023/956
- Rated Voltage
- Mechanical (not subject to electrical certification)
Mounting interface and fastening
- Horizontal hole spacing
- 102 mm
- Vertical hole spacing
- 102 mm
- Mounting hole diameter
- 9 mm
- Cable opening diameter
- 46 mm
- Fastening
- 4 × M8; bolts not included
Frequently Asked Questions
Support arm systems are designed to safely mount and position HMI panels, operator interfaces,
keyboards, and control devices. They enable ergonomic operation, flexible movement, and stable
positioning in industrial environments.
