Question 1

What are support arm systems used for?

Accepted Answer

Support arm systems are designed to safely mount and position HMI panels, operator interfaces,
keyboards, and control devices. They enable ergonomic operation, flexible movement, and stable
positioning in industrial environments.

Question 2

What loads can the TA050, TA080 and TA130 support-arm systems carry?

Accepted Answer

The series values are reference values for a defined configuration at a 1 m reach: TA050 up to approximately 50 kg, TA080 up to approximately 80 kg and TA130 up to approximately 130 kg. The permissible load of the actual system depends on the reach, the number and arrangement of joints, the mounting position and the panel weight. It must be checked against the approved load diagram or by a project-specific calculation.

Question 3

Are the support arm systems IP-rated?

Accepted Answer

No. The protection rating is specific to the article and configuration and applies only to an assembly completed in accordance with the installation instructions. Approved support-arm components are stated as IP65 to DIN EN 60529 where shown in the product data sheet; components with the .900 suffix are stated as IP54. The data sheet for the specific article always takes precedence.

Question 4

How are the protective conductor and equipotential bonding implemented in the XINDUX support-arm system?

Accepted Answer

Support-arm components have defined connection points for the protective conductor or equipotential bonding. The required conductors, connections and checks must be implemented for the actual system configuration in accordance with the installation instructions for the specific article. This arrangement does not remove the need for a required protective conductor.

Question 5

Mounting options:

Accepted Answer

Top mounting (vertical downfeed) Bottom mounting (vertical upfeed) Side mounting Floor stands / kiosk systems

Question 6

Custom lengths:

Accepted Answer

Standard lengths: 250 / 500 / 750 / 1000 / 1250 / 1500 / 2000 mmCustom up to 4 meters possible.

Question 7

Custom HMI panels:

Accepted Answer

We design custom housings, keyboards, joystick plates, branding modules.

Question 8

Materials:

Accepted Answer

Aluminum 6000

Question 9

Powder coating:

Accepted Answer

Standard RAL7035. Optional RAL9005 or any RAL on request.

Question 10

Drawings:

Accepted Answer

STEP + 2D drawings available, including simplified multibody STEP Files.

Question 11

Assembly:

Accepted Answer

Available as pre-assembled, partial kits, or individual components.

Question 12

Delivery time:

Accepted Answer

Stock: 1 week Custom/Assembly: 2–4 weeks Custom Panels: 4–6 weeks

Question 13

Industries:

Accepted Answer

Machine building, automation, packaging, CNC, medical, cleanroom, energy,  process industry.

Question 14

Vibration absorption:

Accepted Answer

Damping profiles, reinforced joints, rubber mounts, stabilization options.

Question 15

Selection criteria:

Accepted Answer

Panel weight, reach, mounting, mobility, environment. We assist with full design.

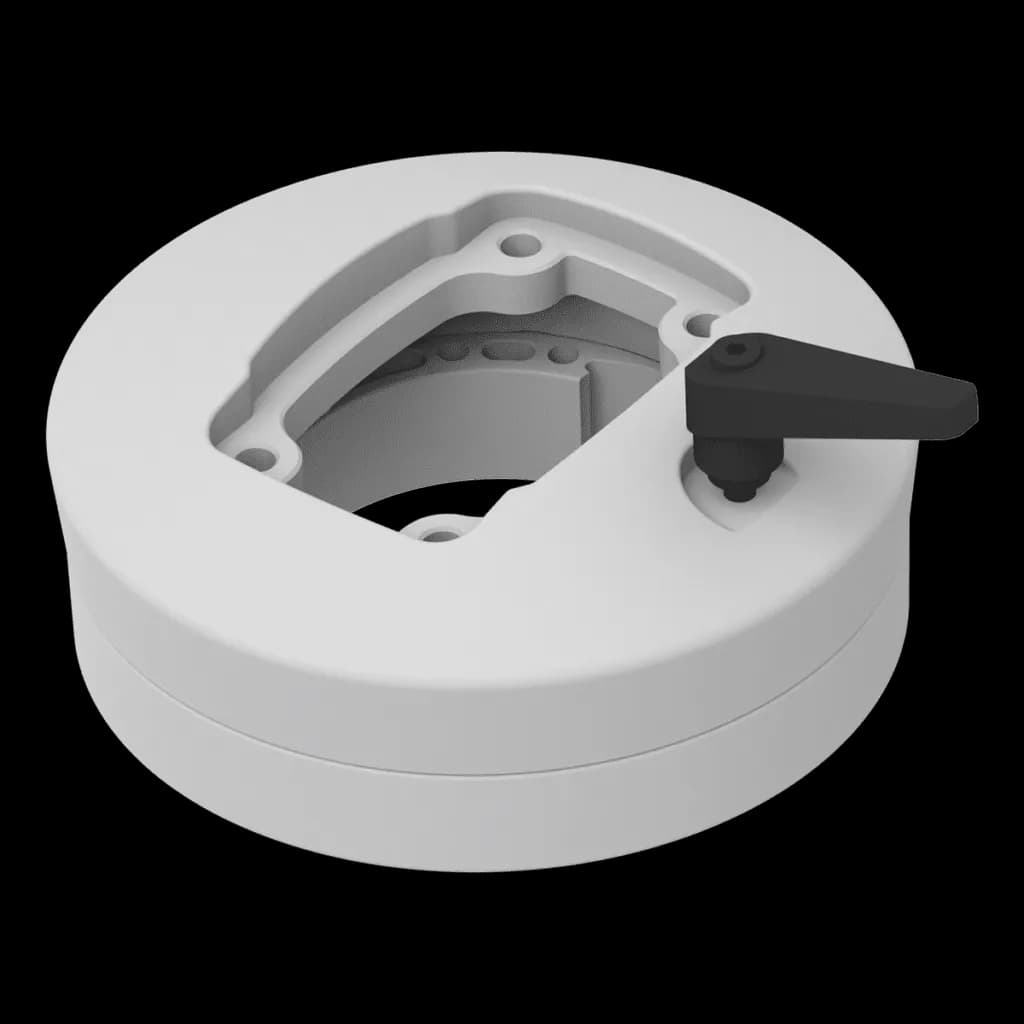

XX-TA080.320
