JOINT PARTS
XX-TA050.610

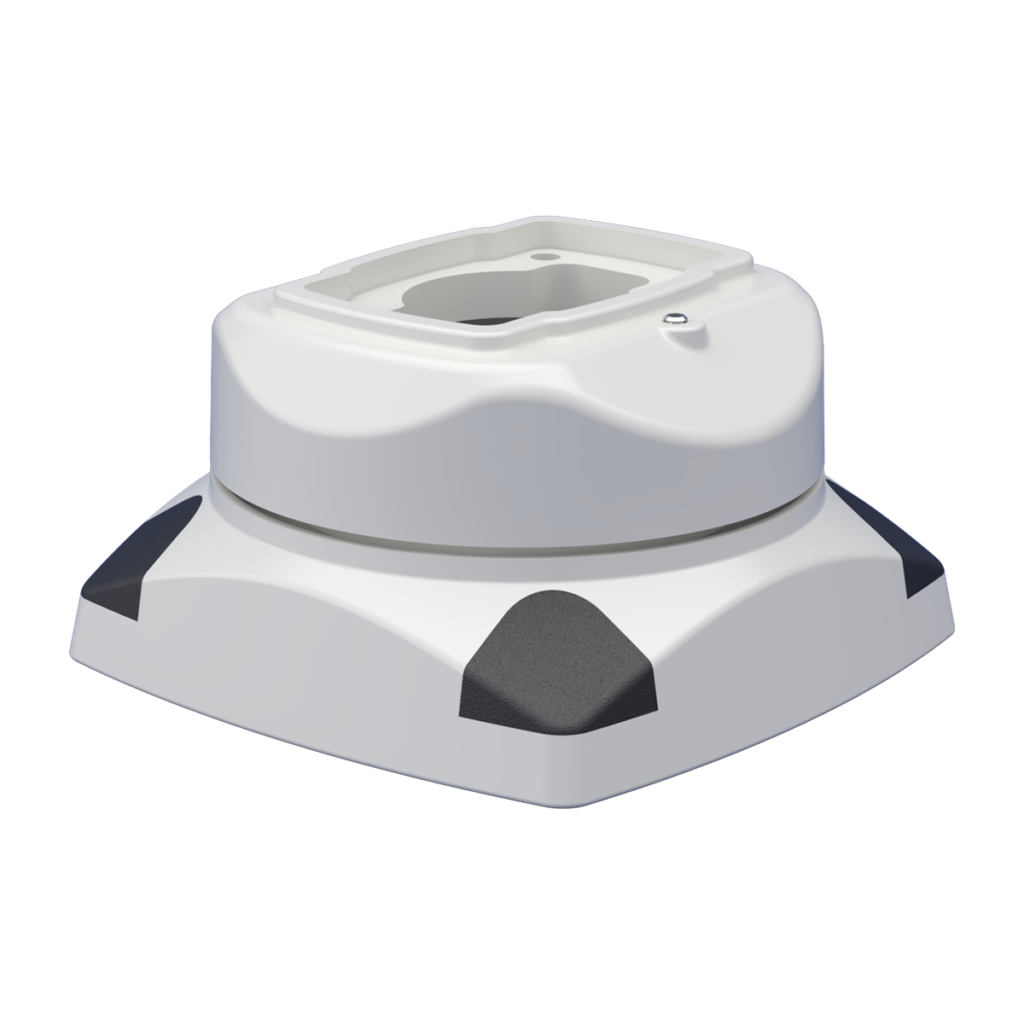

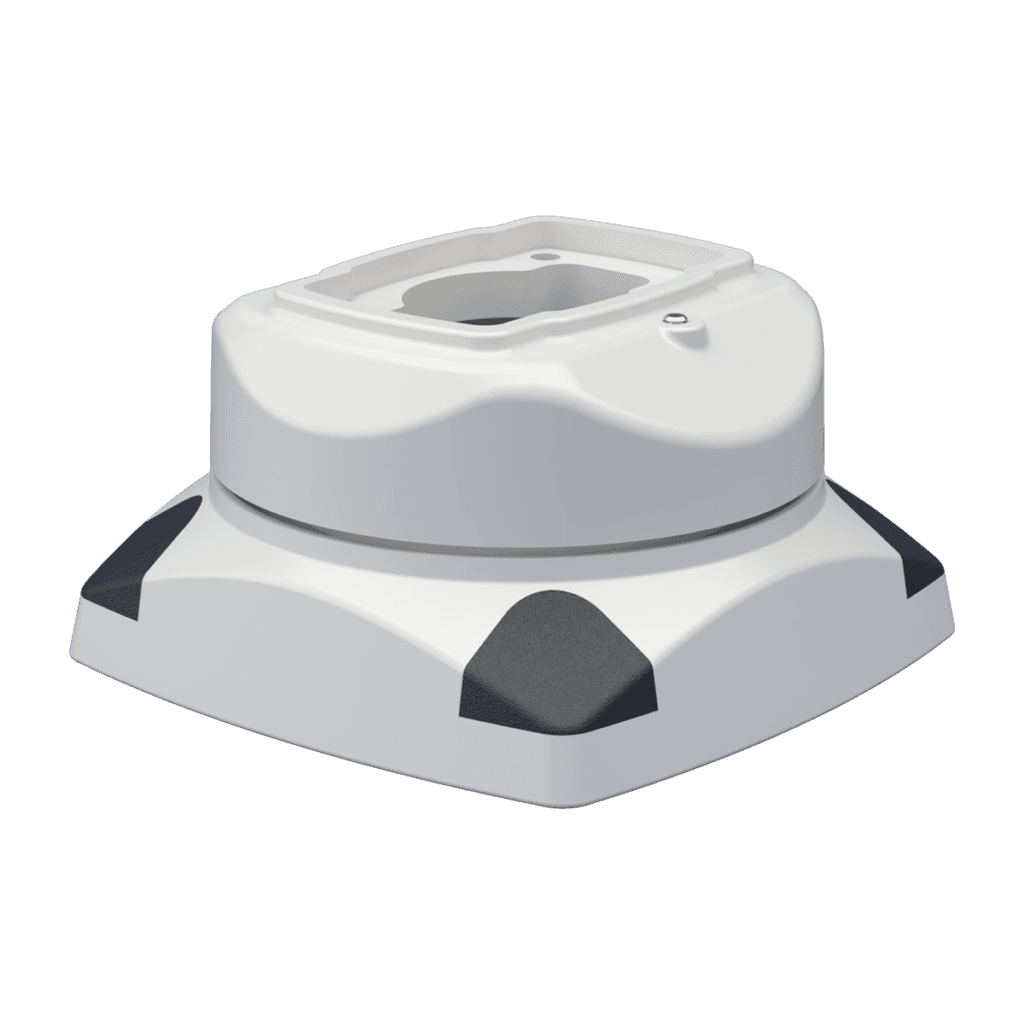

Request a quoteXX-TA050.610 Stand Coupling Rotatable Vertical Outlet provides a 315° rotation movement to the right and left. It is designated for light loads configurations and can also serve as a “Fixed Kiosk”.
- Weight
- 1600 gr.
- Material
- Aluminum 6000
- Color
- RAL7035
- Package Dimensions
- 140x130x110 mm
- HS Code
- 7606.99.90.19
- Warranty
- 5 years
TECHNICAL DATASHEETAdditional Information
- Material Composition
- Aluminum 6000
- Dimensions
- 140x130x110 mm
- Operating Weight
- 1600 gr.
- Primary Use Case
- Machine Building / Automation / HMI operator stations
- Operating Temperature
- –40°C to +70°C
- Protection Rating
- –IP65 (DIN EN 60529)
- Earthing
- Yes, integrated solution
- RoHS Compliance
- RoHS EU Directive 2011/65/EU
- REACH Compliance
- REACH Regulation 1907/2006/EC
- Certification
- IEC 60529; (EG) No. 765/2008; (EU) 2023/956
- Rated Voltage
- Mechanical (not subject to electrical certification)
Frequently Asked Questions
Support arm systems are designed to safely mount and position HMI panels, operator interfaces,
keyboards, and control devices. They enable ergonomic operation, flexible movement, and stable
positioning in industrial environments.
