XX-TA050.600

JOINT PARTS

XX-TA050.600

Request a quote

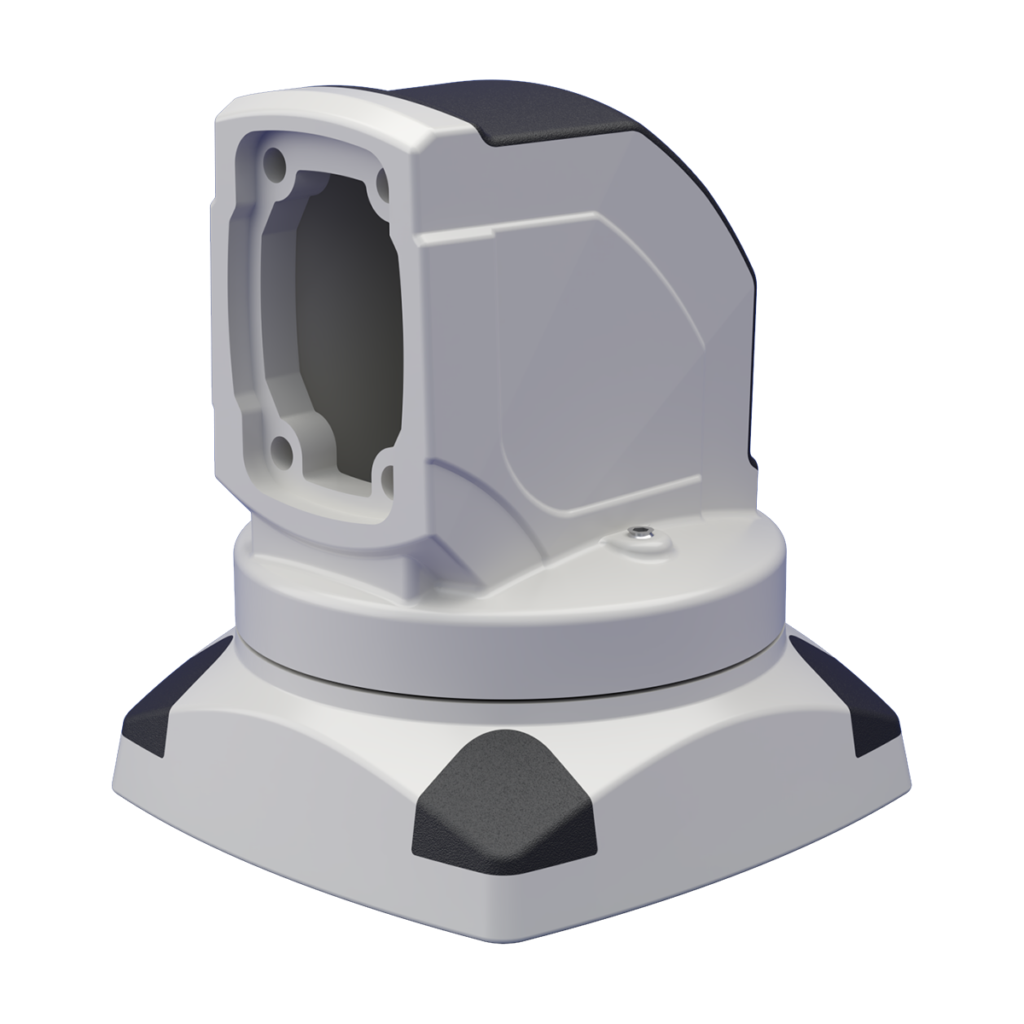

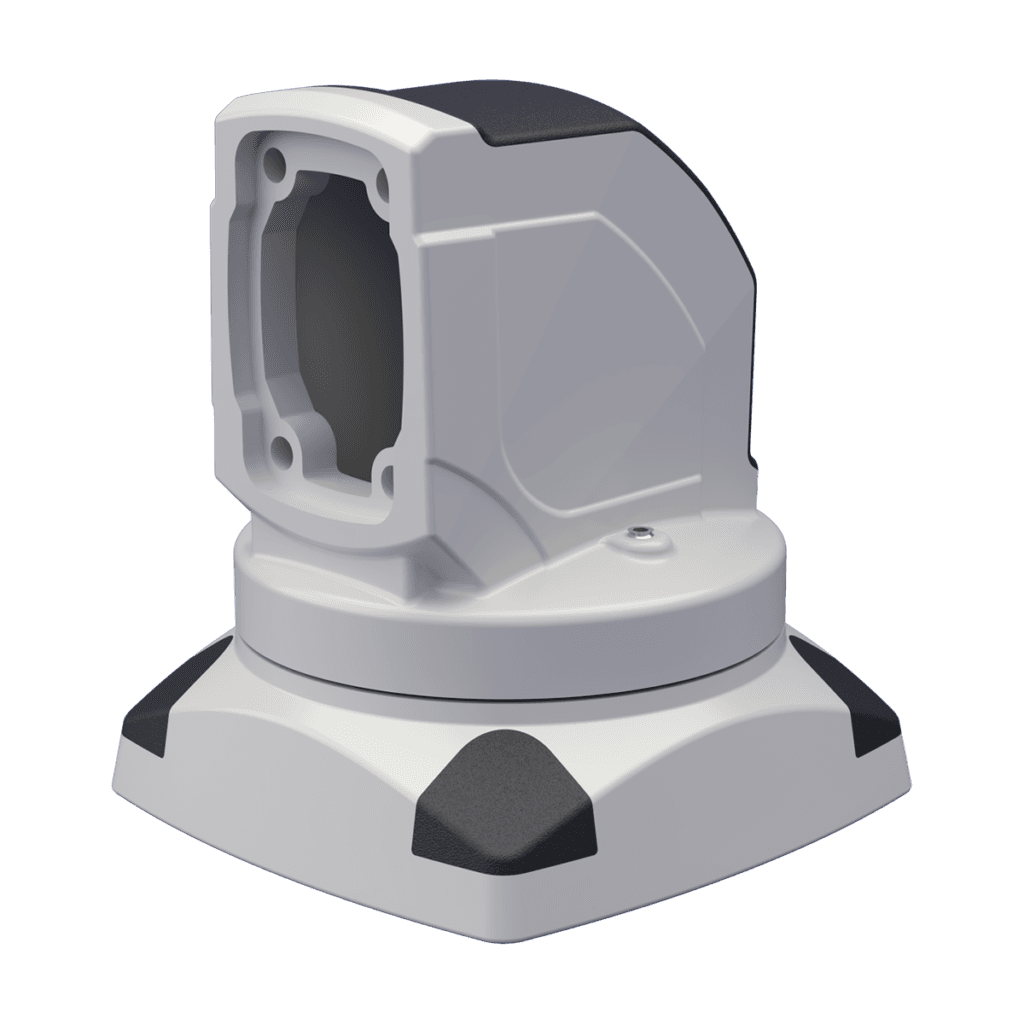

XX-TA050.600 Horizontal Top Joint is produced to provide a connection for a high position point. It allows a smooth rotation for the panel horizontally and provides a 315° movement mobility to the right or left . This product is manufactured for light weight configurations.

Weight
1800 gr.
Material
Aluminum 6000
Color
RAL7035
Package Dimensions
130x125x170 mm
HS Code
7606.99.90.19
Warranty
5 years
TECHNICAL DATASHEETCAD/STEP DOWNLOAD

Additional Information

Material Composition
Aluminum 6000
Dimensions
130x125x170 mm
Operating Weight
1800 gr.
Primary Use Case
Machine Building / Automation / HMI operator stations
Operating Temperature
–40°C to +70°C
Protection Rating
–IP65 (DIN EN 60529)
Earthing
Yes, integrated solution
RoHS Compliance
RoHS EU Directive 2011/65/EU
REACH Compliance
REACH Regulation 1907/2006/EC
Certification
IEC 60529; (EG) No. 765/2008; (EU) 2023/956
Rated Voltage
Mechanical (not subject to electrical certification)

Frequently Asked Questions

Support arm systems are designed to safely mount and position HMI panels, operator interfaces,
keyboards, and control devices. They enable ergonomic operation, flexible movement, and stable
positioning in industrial environments.
