JOINT PARTS

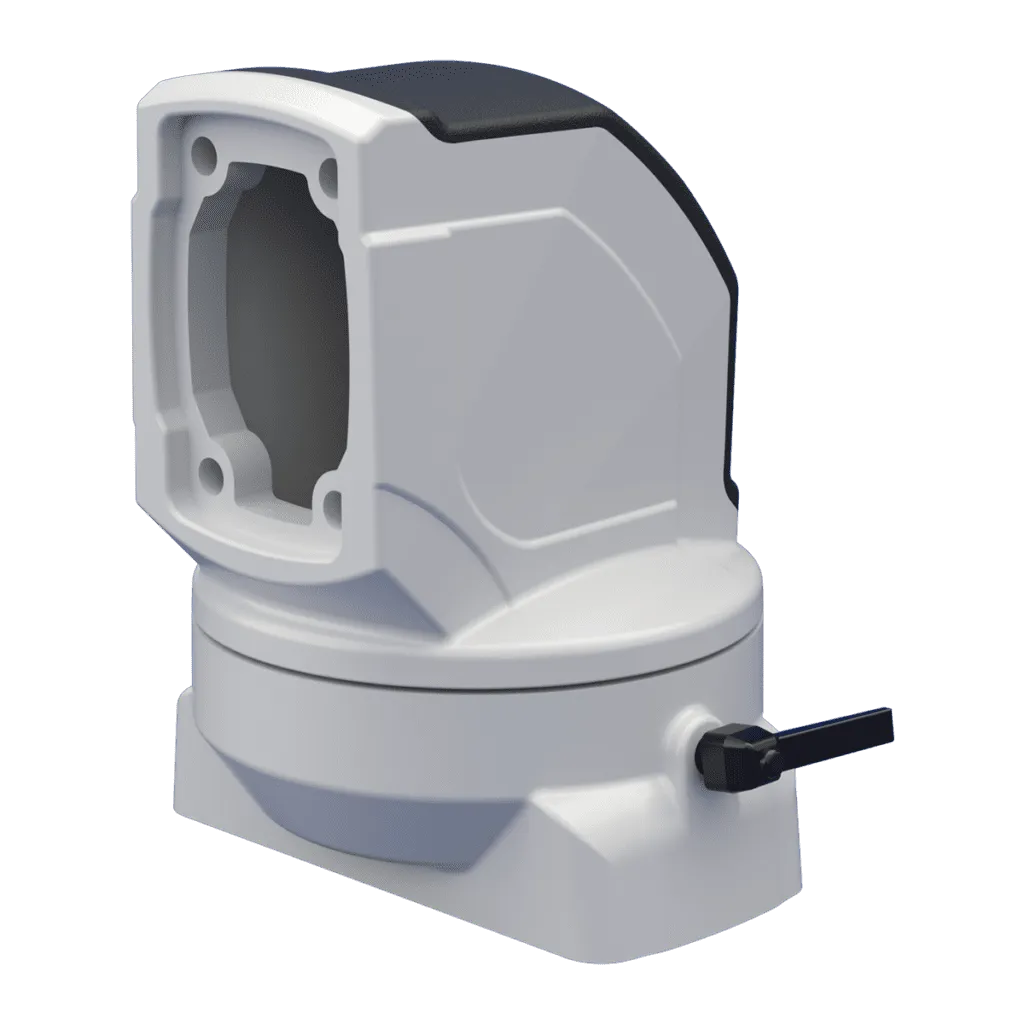

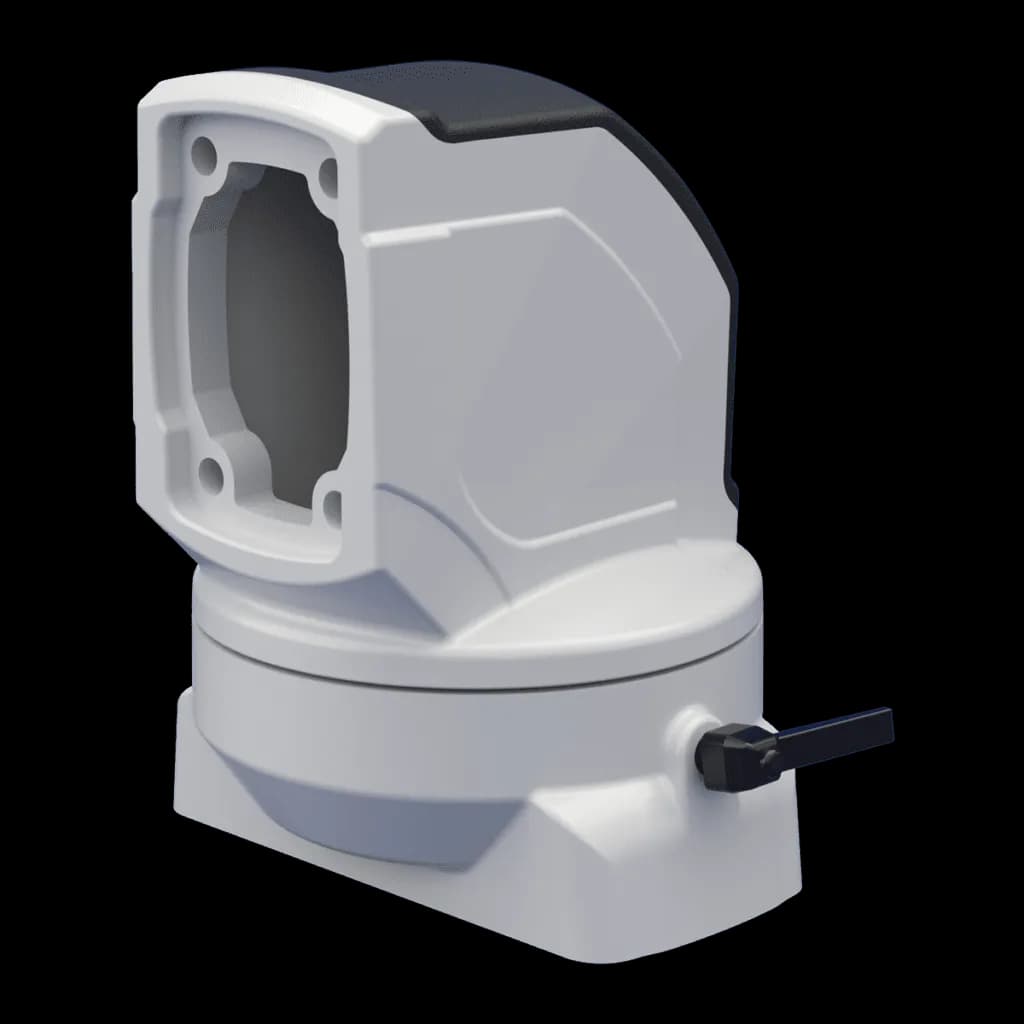

XX-TA050.400
Request a quoteThe series of XX-TA050.400 support-arm systems are suitable for short length arm applications produced for panels carrying light loads. This operator support arm series offers many functional solutions with its wide range components. Code RAL 7035 is a light gray paint used for this product with impermeability feature.
- Weight
- 1,200 g
- Material
- Aluminum 6000
- Colour
- RAL7035
- Package Dimensions
- 135x110x160 mm
- HS Code
- 7606.99.90.19
- Warranty
- 5 years
TECHNICAL DATASHEETAdditional Information
- Material Composition
- Aluminum 6000
- Dimensions
- 135x110x160 mm
- Operating Weight
- 1,200 g
- Primary Use Case
- Machine Building / Automation / HMI operator stations
- Operating Temperature
- –40°C to +70°C
- Protection Rating
- –IP65 (DIN EN 60529)
- Earthing
- Yes, integrated solution
- RoHS Compliance
- RoHS EU Directive 2011/65/EU
- REACH Compliance
- REACH Regulation 1907/2006/EC
- Certification
- IEC 60529; (EG) No. 765/2008; (EU) 2023/956
- Rated Voltage
- Mechanical (not subject to electrical certification)
Frequently Asked Questions
Support arm systems are designed to safely mount and position HMI panels, operator interfaces,
keyboards, and control devices. They enable ergonomic operation, flexible movement, and stable
positioning in industrial environments.
