Industrial Enclosures

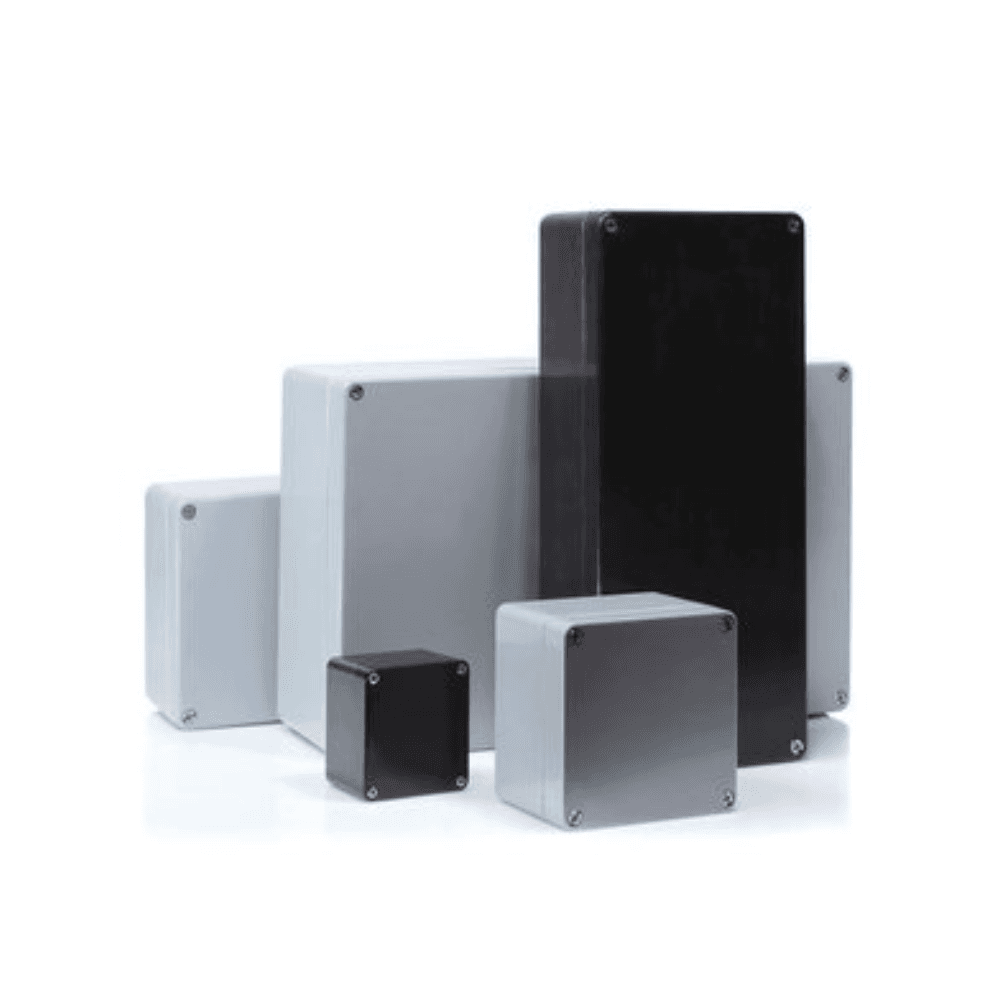

Polyster Enclosures (GRP)
Request a quote- Weight
- 280 to 730 gr.
- Material
- Glass-fibre reinforced polyester (GRP)
- Colour
- RAL7000 / RAL9011
- Package Dimensions
- 80 x 75 x 55 to 400 x 405 x 200 mm
- HS Code
- 85369030
- Special Options
- EMC option, machining, pre-assembly
TECHNICAL DATASHEETAdditional Information
- Material Composition
- Glass-fibre reinforced polyester (GRP)
- Protection
- Shock resistance 7 J according to EN 60079-0 (model dependent)
- Surface
- GRP surface; low surface resistance options for black material variants
- Primary Use Case
- Machine building / Control / Distribution
- Operating Temperature
- -60 °C to +165 °C (according to extracted technical specification)
- Protection Rating
- IP66 / IP67 / IP68 acc. to DIN EN 60529
- Earthing
- Project-specific depending on internal build and accessories
- RoHS Compliance
- Per model datasheet
- REACH Compliance
- Per model datasheet
- Compatibility
- Standardized size matrix with TS15/TS35 accessory ecosystem
Available sizes
26 standard sizes, each with a 2D drawing and 3D model.
| Mounting plate | Hinges | Drawings | 3D models | |||||
|---|---|---|---|---|---|---|---|---|
| GBP000807555 | 80 | 75 | 55 | 280 | Download | Download | ||
| GBP000807575 | 80 | 75 | 75 | 370 | Download | Download | ||
| GBP001107555 | 110 | 75 | 55 | 340 | Download | Download | ||
| GBP001107575 | 110 | 75 | 75 | 408 | Download | Download | ||
| GBP001607555 | 160 | 75 | 55 | 450 | Download | Download | ||
| GBP001607575 | 160 | 75 | 75 | 525 | Download | Download | ||
| GBP001907555 | 190 | 75 | 55 | 540 | Download | Download | ||
| GBP001907575 | 190 | 75 | 75 | 585 | Download | Download | ||
| GBP012212090 | 122 | 120 | 90 | 710 | Download | Download | ||
| GBP016016090 | 160 | 160 | 90 | 1285 | Download | Download | ||
| GBP022012090 | 220 | 120 | 90 | 1080 | Download | Download | ||
| GBP026016090 | 260 | 160 | 90 | 1755 | Download | Download | ||
| GBP036016090 | 360 | 160 | 90 | 2230 | Download | Download | ||
| GBP056016090 | 560 | 160 | 90 | 3270 | Download | Download | ||
| GBP122120120 | 122 | 120 | 120 | 800 | ||||
| GBP160160120 | 160 | 160 | 120 | 1400 | ||||
| GBP200250120 | 200 | 250 | 120 | 2300 | ||||
| GBP255250120 | 255 | 250 | 120 | 2890 | Download | Download | ||
| GBP255250160 | 255 | 250 | 160 | 3600 | Download | Download | ||
| GBP400250120 | 400 | 250 | 120 | 4700 | Download | Download | ||
| GBP400250160 | 400 | 250 | 160 | 4750 | Download | Download | ||
| GBP400405120 | 400 | 405 | 120 | 7380 | Download | Download | ||
| GBP400405165 | 400 | 405 | 165 | 7600 | ||||
| GBP400405200 | 400 | 405 | 200 | 8300 | Download | Download | ||
| GBP600250120 | 600 | 250 | 120 | 5910 | Download | Download | ||
| GBP600250160 | 600 | 250 | 160 | 7030 | Download | Download |
GBP000807555
- Length (mm)
- 80
- Width (mm)
- 75
- Height (mm)
- 55
- Weight (g)
- 280
- Mounting plate
- Hinges
GBP000807575
- Length (mm)
- 80
- Width (mm)
- 75
- Height (mm)
- 75
- Weight (g)
- 370
- Mounting plate
- Hinges
GBP001107555
- Length (mm)
- 110
- Width (mm)
- 75
- Height (mm)
- 55
- Weight (g)
- 340
- Mounting plate
- Hinges
GBP001107575
- Length (mm)
- 110
- Width (mm)
- 75
- Height (mm)
- 75
- Weight (g)
- 408
- Mounting plate
- Hinges
GBP001607555
- Length (mm)
- 160
- Width (mm)
- 75
- Height (mm)
- 55
- Weight (g)
- 450
- Mounting plate
- Hinges
GBP001607575
- Length (mm)
- 160
- Width (mm)
- 75
- Height (mm)
- 75
- Weight (g)
- 525
- Mounting plate
- Hinges
GBP001907555
- Length (mm)
- 190
- Width (mm)
- 75
- Height (mm)
- 55
- Weight (g)
- 540
- Mounting plate
- Hinges
GBP001907575
- Length (mm)
- 190
- Width (mm)
- 75
- Height (mm)
- 75
- Weight (g)
- 585
- Mounting plate
- Hinges
GBP012212090
- Length (mm)
- 122
- Width (mm)
- 120
- Height (mm)
- 90
- Weight (g)
- 710
- Mounting plate
- Hinges
GBP016016090
- Length (mm)
- 160
- Width (mm)
- 160
- Height (mm)
- 90
- Weight (g)
- 1285
- Mounting plate
- Hinges
GBP022012090
- Length (mm)
- 220
- Width (mm)
- 120
- Height (mm)
- 90
- Weight (g)
- 1080
- Mounting plate
- Hinges
GBP026016090
- Length (mm)
- 260
- Width (mm)
- 160
- Height (mm)
- 90
- Weight (g)
- 1755
- Mounting plate
- Hinges
GBP036016090
- Length (mm)
- 360
- Width (mm)
- 160
- Height (mm)
- 90
- Weight (g)
- 2230
- Mounting plate
- Hinges
GBP056016090
- Length (mm)
- 560
- Width (mm)
- 160
- Height (mm)
- 90
- Weight (g)
- 3270
- Mounting plate
- Hinges
GBP122120120
- Length (mm)
- 122
- Width (mm)
- 120
- Height (mm)
- 120
- Weight (g)
- 800
- Mounting plate
- Hinges
GBP160160120
- Length (mm)
- 160
- Width (mm)
- 160
- Height (mm)
- 120
- Weight (g)
- 1400
- Mounting plate
- Hinges
GBP200250120
- Length (mm)
- 200
- Width (mm)
- 250
- Height (mm)
- 120
- Weight (g)
- 2300
- Mounting plate
- Hinges
GBP255250120
- Length (mm)
- 255
- Width (mm)
- 250
- Height (mm)
- 120
- Weight (g)
- 2890
- Mounting plate
- Hinges
GBP255250160
- Length (mm)
- 255
- Width (mm)
- 250
- Height (mm)
- 160
- Weight (g)
- 3600
- Mounting plate
- Hinges
GBP400250120
- Length (mm)
- 400
- Width (mm)
- 250
- Height (mm)
- 120
- Weight (g)
- 4700
- Mounting plate
- Hinges
GBP400250160
- Length (mm)
- 400
- Width (mm)
- 250
- Height (mm)
- 160
- Weight (g)
- 4750
- Mounting plate
- Hinges
GBP400405120
- Length (mm)
- 400
- Width (mm)
- 405
- Height (mm)
- 120
- Weight (g)
- 7380
- Mounting plate
- Hinges
GBP400405165
- Length (mm)
- 400
- Width (mm)
- 405
- Height (mm)
- 165
- Weight (g)
- 7600
- Mounting plate
- Hinges
GBP400405200
- Length (mm)
- 400
- Width (mm)
- 405
- Height (mm)
- 200
- Weight (g)
- 8300
- Mounting plate
- Hinges
GBP600250120
- Length (mm)
- 600
- Width (mm)
- 250
- Height (mm)
- 120
- Weight (g)
- 5910
- Mounting plate
- Hinges
GBP600250160
- Length (mm)
- 600
- Width (mm)
- 250
- Height (mm)
- 160
- Weight (g)
- 7030
- Mounting plate
- Hinges
Documentation
Mounting plates, hinges, brackets and planning aids for this product line. Every document is issued in German and English.
Mounting plate
- Download
DIN-Schienenlängen / DIN rail lengths · XX-DOK-TS-LAENGEN
XX-DOK-TS-LAENGEN · 2 pages · DE / EN
- Download
DIN-Schienenprofile / DIN rail profiles · XX-DOK-TS-PROFILE
XX-DOK-TS-PROFILE · 2 pages · DE / EN
- Download
Montageplatte / Mounting plate · XX-DOK-MP-1107555
110 × 75 × 55 mm · XX-DOK-MP-1107555 · 2 pages · DE / EN
- Download
Montageplatte / Mounting plate · XX-DOK-MP-12212090
122 × 120 × 90 mm · XX-DOK-MP-12212090 · 2 pages · DE / EN
- Download
Montageplatte / Mounting plate · XX-DOK-MP-16016090
160 × 160 × 90 mm · XX-DOK-MP-16016090 · 2 pages · DE / EN
- Download
Montageplatte / Mounting plate · XX-DOK-MP-1607555
160 × 75 × 55 mm · XX-DOK-MP-1607555 · 2 pages · DE / EN
- Download
Montageplatte / Mounting plate · XX-DOK-MP-1607575
160 × 75 × 75 mm · XX-DOK-MP-1607575 · 2 pages · DE / EN
- Download
Montageplatte / Mounting plate · XX-DOK-MP-1907555
190 × 75 × 55 mm · XX-DOK-MP-1907555 · 2 pages · DE / EN
- Download
Montageplatte / Mounting plate · XX-DOK-MP-22012090
220 × 120 × 90 mm · XX-DOK-MP-22012090 · 2 pages · DE / EN
- Download
Montageplatte / Mounting plate · XX-DOK-MP-255250120-160
XX-DOK-MP-255250120-160 · 2 pages · DE / EN
- Download
Montageplatte / Mounting plate · XX-DOK-MP-26016090
260 × 160 × 90 mm · XX-DOK-MP-26016090 · 2 pages · DE / EN
- Download
Montageplatte / Mounting plate · XX-DOK-MP-36016090
360 × 160 × 90 mm · XX-DOK-MP-36016090 · 2 pages · DE / EN
- Download
Montageplatte / Mounting plate · XX-DOK-MP-400250120-160
400 × 250 × 120 mm · XX-DOK-MP-400250120-160 · 2 pages · DE / EN
- Download
Montageplatte / Mounting plate · XX-DOK-MP-405400120
400 × 405 × 120 mm · XX-DOK-MP-405400120 · 2 pages · DE / EN
- Download
Montageplatte / Mounting plate · XX-DOK-MP-600250120-160
XX-DOK-MP-600250120-160 · 2 pages · DE / EN
- Download
Montageplatte / Mounting plate · XX-DOK-MP-807555
80 × 75 × 55 mm · XX-DOK-MP-807555 · 2 pages · DE / EN
- Download
Montageplatte / Mounting plate · XX-DOK-MP-807575
80 × 75 × 75 mm · XX-DOK-MP-807575 · 2 pages · DE / EN
Allocation planning
- Download
Belegungsplanung / Allocation planning
12 pages · DE / EN
Collections
- Download
TECHNISCHE ZEICHNUNGEN / TECHNICAL DRAWINGS
35 pages · DE / EN
Accessories

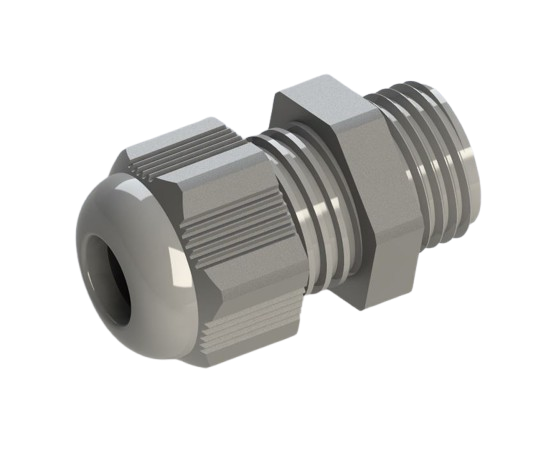

Cable Glands in diverse materials, EX and EMC solutions available
External earthing M4 / M6, stainless steel
Wall brackets M4 / M6, steel, galvanized
Terminal block manufacturer of your choice
Inner joints stainless steel A2
External joints die-cast aluminum
Mounting Plate, sheet steel, galvanized
Support Rail 35 mm, steel, galvanized
Support Rail 32 mm, steel, galvanized
Support Rail 15 mm, steel, galvanized
Lid Seal (optional: silicone or EMC seal)
Cover Screws (optional: sealable or hexagon socket)
Frequently Asked Questions
A GRP (glass-fibre reinforced polyester) enclosure range for industrial use with broad size coverage and standard configurations.
