Industrial Enclosures

Ex Polyester Enclosures (GRP)

Request a quote

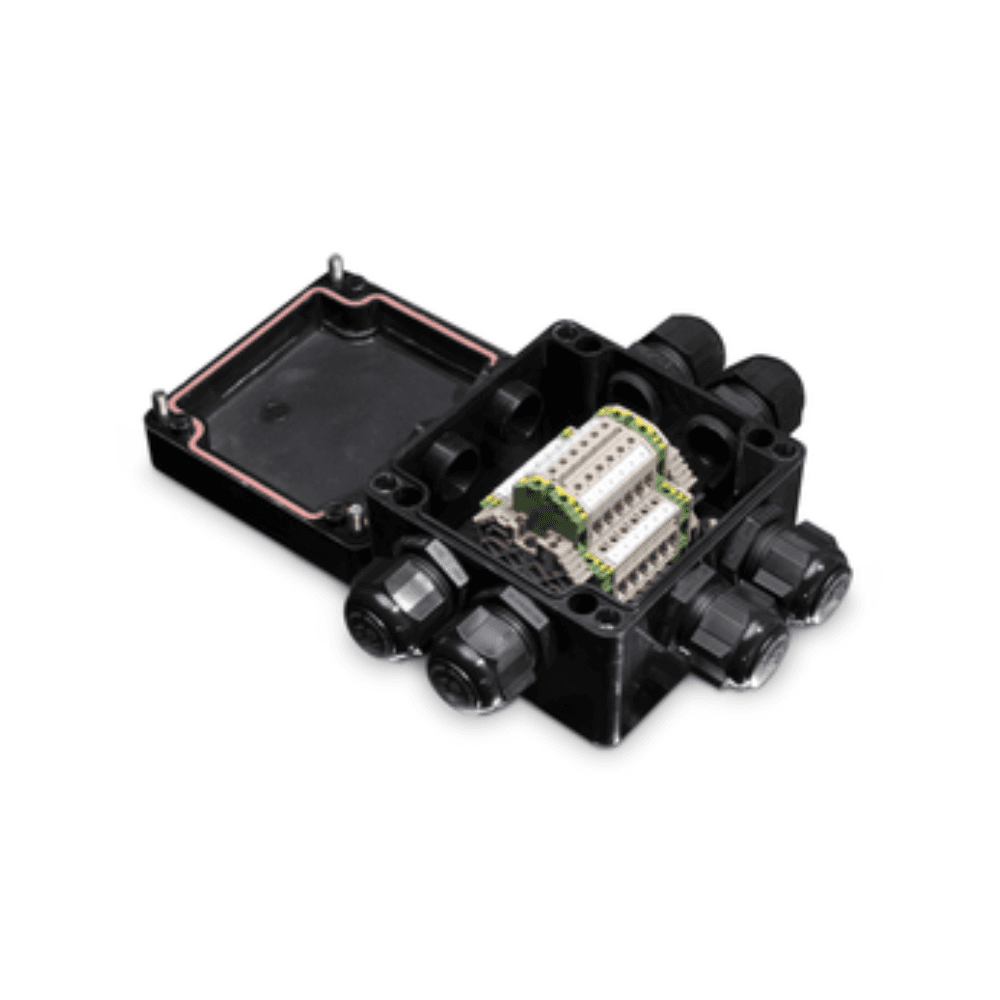

GBPEX is the Ex-oriented GRP enclosure range for hazardous-area projects requiring ATEX/IECEx documentation paths and project-specific configuration. The platform supports empty and terminal-type Ex concepts with defined grounding options. The matrix includes 22 sizes from 80 x 75 x 55 mm up to 400 x 405 x 200 mm, with PDF drawings and 3D STEP models available.
Weight
280 to 730 gr.
Material
Ex-oriented glass-fibre reinforced polyester (GRP)
Colour
RAL7000 / RAL9005
Package Dimensions
80 x 75 x 55 to 400 x 405 x 200 mm
HS Code
85369030
Special Options
ATEX / IECEx, Ex configuration
TECHNICAL DATASHEET

Additional Information

Material Composition
Ex-oriented glass-fibre reinforced polyester (GRP)
Protection
Surface resistance options for Ex requirements (material and color dependent)
Surface
GRP Ex housing surface with project-selected material/color execution
Primary Use Case
Machine Building / Automation / HMI operator stations
Operating Temperature
Max. -55 °C to +135 °C (according to extracted technical specification)
Protection Rating
IP66 acc. to DIN EN 60529
Earthing
Earthing rails, PE busbar and earth plates (model dependent)
RoHS Compliance
Per model datasheet and project approval scope
REACH Compliance
Per model datasheet and project approval scope
Certification
Compatible matrix structure with GBP family for engineering and replacement workflows

Available sizes

20 standard sizes, each with a 2D drawing and 3D model.

20 of 20

  • GBPEX000807555

    Length (mm)
    80
    Width (mm)
    75
    Height (mm)
    55
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

  • GBPEX000807575

    Length (mm)
    80
    Width (mm)
    75
    Height (mm)
    75
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

  • GBPEX001107555

    Length (mm)
    110
    Width (mm)
    75
    Height (mm)
    55
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

  • GBPEX001107575

    Length (mm)
    110
    Width (mm)
    75
    Height (mm)
    75
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

  • GBPEX001607555

    Length (mm)
    160
    Width (mm)
    75
    Height (mm)
    55
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

  • GBPEX001607575

    Length (mm)
    160
    Width (mm)
    75
    Height (mm)
    75
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

  • GBPEX001907555

    Length (mm)
    190
    Width (mm)
    75
    Height (mm)
    55
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

  • GBPEX001907575

    Length (mm)
    190
    Width (mm)
    75
    Height (mm)
    75
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

  • GBPEX012212090

    Length (mm)
    122
    Width (mm)
    120
    Height (mm)
    90
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

  • GBPEX016016090

    Length (mm)
    160
    Width (mm)
    160
    Height (mm)
    90
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

  • GBPEX022012090

    Length (mm)
    220
    Width (mm)
    120
    Height (mm)
    90
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

  • GBPEX026016090

    Length (mm)
    260
    Width (mm)
    160
    Height (mm)
    90
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

  • GBPEX036016090

    Length (mm)
    360
    Width (mm)
    160
    Height (mm)
    90
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

  • GBPEX056016090

    Length (mm)
    560
    Width (mm)
    160
    Height (mm)
    90
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

  • GBPEX255250120

    Length (mm)
    255
    Width (mm)
    250
    Height (mm)
    120
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

  • GBPEX400250120

    Length (mm)
    400
    Width (mm)
    250
    Height (mm)
    120
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

  • GBPEX400405120

    Length (mm)
    400
    Width (mm)
    405
    Height (mm)
    120
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

  • GBPEX400405165

    Length (mm)
    400
    Width (mm)
    405
    Height (mm)
    165
    Weight (g)
    —
    Mounting plate
    Hinges

  • GBPEX400405200

    Length (mm)
    400
    Width (mm)
    405
    Height (mm)
    200
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

  • GBPEX600250120

    Length (mm)
    600
    Width (mm)
    250
    Height (mm)
    120
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

Documentation

Mounting plates, hinges, brackets and planning aids for this product line. Every document is issued in German and English.

Mounting plate

  • DIN-Schienenlängen / DIN rail lengths · XX-DOK-TS-LAENGEN

    XX-DOK-TS-LAENGEN · 2 pages · DE / EN

    Download

  • DIN-Schienenprofile / DIN rail profiles · XX-DOK-TS-PROFILE

    XX-DOK-TS-PROFILE · 2 pages · DE / EN

    Download

  • Montageplatte / Mounting plate · XX-DOK-MP-1107555

    110 × 75 × 55 mm · XX-DOK-MP-1107555 · 2 pages · DE / EN

    Download

  • Montageplatte / Mounting plate · XX-DOK-MP-12212090

    122 × 120 × 90 mm · XX-DOK-MP-12212090 · 2 pages · DE / EN

    Download

  • Montageplatte / Mounting plate · XX-DOK-MP-16016090

    160 × 160 × 90 mm · XX-DOK-MP-16016090 · 2 pages · DE / EN

    Download

  • Montageplatte / Mounting plate · XX-DOK-MP-1607555

    160 × 75 × 55 mm · XX-DOK-MP-1607555 · 2 pages · DE / EN

    Download

  • Montageplatte / Mounting plate · XX-DOK-MP-1607575

    160 × 75 × 75 mm · XX-DOK-MP-1607575 · 2 pages · DE / EN

    Download

  • Montageplatte / Mounting plate · XX-DOK-MP-1907555

    190 × 75 × 55 mm · XX-DOK-MP-1907555 · 2 pages · DE / EN

    Download

  • Montageplatte / Mounting plate · XX-DOK-MP-22012090

    220 × 120 × 90 mm · XX-DOK-MP-22012090 · 2 pages · DE / EN

    Download

  • Montageplatte / Mounting plate · XX-DOK-MP-255250120-160

    XX-DOK-MP-255250120-160 · 2 pages · DE / EN

    Download

  • Montageplatte / Mounting plate · XX-DOK-MP-26016090

    260 × 160 × 90 mm · XX-DOK-MP-26016090 · 2 pages · DE / EN

    Download

  • Montageplatte / Mounting plate · XX-DOK-MP-36016090

    360 × 160 × 90 mm · XX-DOK-MP-36016090 · 2 pages · DE / EN

    Download

  • Montageplatte / Mounting plate · XX-DOK-MP-400250120-160

    400 × 250 × 120 mm · XX-DOK-MP-400250120-160 · 2 pages · DE / EN

    Download

  • Montageplatte / Mounting plate · XX-DOK-MP-405400120

    400 × 405 × 120 mm · XX-DOK-MP-405400120 · 2 pages · DE / EN

    Download

  • Montageplatte / Mounting plate · XX-DOK-MP-600250120-160

    XX-DOK-MP-600250120-160 · 2 pages · DE / EN

    Download

  • Montageplatte / Mounting plate · XX-DOK-MP-807555

    80 × 75 × 55 mm · XX-DOK-MP-807555 · 2 pages · DE / EN

    Download

  • Montageplatte / Mounting plate · XX-DOK-MP-807575

    80 × 75 × 75 mm · XX-DOK-MP-807575 · 2 pages · DE / EN

    Download

Collections

  • TECHNISCHE ZEICHNUNGEN / TECHNICAL DRAWINGS

    35 pages · DE / EN

    Download

Accessories

Frequently Asked Questions

Hazardous-area projects where ATEX-oriented design and documentation are required.
