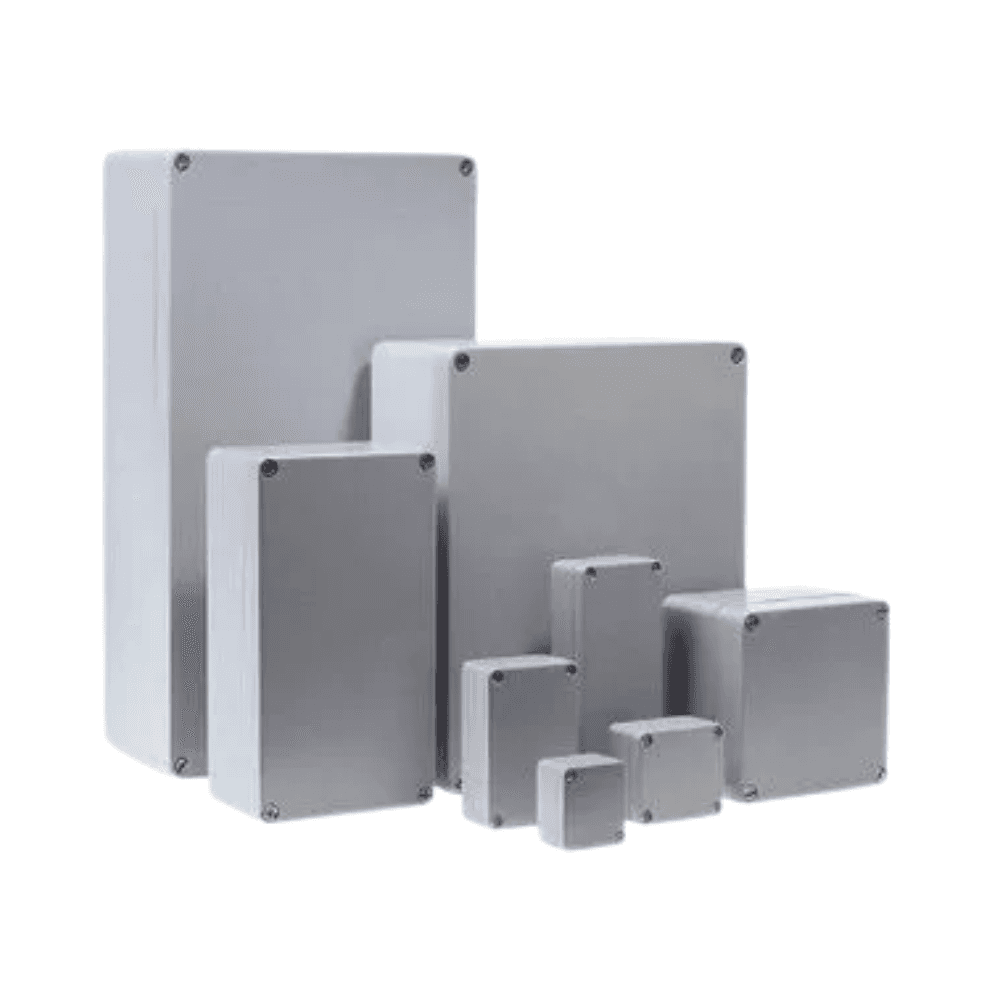

Aluminium Enclosures
Request a quoteRobust, corrosion-resistant aluminium enclosures (AlSi12) for demanding industrial environments and machine applications, available ex stock. With IP66 as standard and IP67/IP68 available on request, sensitive components are protected against dust and water ingress; IK09 impact resistance supports harsh mechanical duty.
The range includes 46 standard sizes from 50 x 45 x 30 mm up to 600 x 600 x 202 mm, with PDF drawings and 3D STEP models for fast engineering integration. GBA enclosures are RoHS and REACH compliant and can be supplied as empty housings or as project-ready solutions with machining and terminal-ready assembly.
- Weight
- 50 to 12000 gr.
- Material
- Aluminium AlSi12
- Colour
- RAL7001
- Size Range
- 50 x 45 x 30 to 600 x 600 x 202 mm
- HS Code
- 85369030
- Special Options
- ATEX / IECEx / EMC
TECHNICAL DATASHEETAdditional Information
- Material Composition
- Aluminium AlSi12
- Protection
- IK09 acc. to DIN EN 62262
- Surface
- Powder coated (structured, silky and shiny), Henkel pre-treatment
- Primary Use Case
- Machine building / Automation / Automotive / Measurement and control
- Operating Temperature
- Neoprene -40 °C to +100 °C (higher range on request)
- Protection Rating
- IP66 (DIN EN 60529), IP67/IP68 on request
- Earthing
- Yes, integrated solution
- RoHS Compliance
- RoHS EU Directive 2011/65/EU
- REACH Compliance
- REACH Regulation 1907/2006/EC
- Compatibility
- Compatibility with standard market sizes for easy replacement
Available sizes
46 standard sizes, each with a 2D drawing and 3D model.
| Mounting plate | Hinges | Drawings | 3D models | |||||
|---|---|---|---|---|---|---|---|---|
| GBA000504530 | 50 | 45 | 30 | 50 | Download | Download | ||
| GBA000586434 | 58 | 64 | 34 | 150 | Download | Download | ||
| GBA000758057 | 75 | 80 | 57 | 350 | Download | Download | ||
| GBA000986434 | 98 | 64 | 34 | 200 | Download | Download | ||
| GBA001156434 | 115 | 64 | 34 | 240 | Download | Download | ||
| GBA001258057 | 125 | 80 | 57 | 450 | Download | Download | ||
| GBA001506434 | 150 | 64 | 34 | 300 | Download | Download | ||
| GBA001758057 | 175 | 80 | 57 | 600 | Download | Download | ||
| GBA001856434 | 185 | 64 | 34 | 360 | Download | Download | ||
| GBA002508052 | 250 | 80 | 52 | 700 | Download | Download | ||
| GBA002508057 | 250 | 80 | 57 | 850 | Download | Download | ||
| GBA010010081 | 100 | 100 | 81 | 650 | Download | Download | ||
| GBA012212081 | 122 | 120 | 81 | 1000 | Download | Download | ||
| GBA012212090 | 122 | 120 | 90 | 1050 | Download | Download | ||
| GBA014014091 | 140 | 140 | 91 | 1350 | Download | Download | ||
| GBA016010081 | 160 | 100 | 81 | 850 | Download | Download | ||
| GBA016016091 | 160 | 160 | 91 | 1600 | Download | Download | ||
| GBA020010080 | 200 | 100 | 80 | 1050 | Download | Download | ||
| GBA020014090 | 200 | 140 | 90 | 1650 | Download | Download | ||
| GBA022012081 | 220 | 120 | 81 | 1500 | Download | Download | ||
| GBA022012091 | 220 | 120 | 91 | 1650 | Download | Download | ||
| GBA026016090 | 260 | 160 | 90 | 2300 | Download | Download | ||
| GBA036012080 | 360 | 120 | 80 | 2050 | Download | Download | ||
| GBA036016090 | 360 | 160 | 90 | 3000 | Download | Download | ||
| GBA056016090 | 560 | 160 | 90 | 4000 | Download | Download | ||
| GBA100230111 | 100 | 230 | 111 | 1800 | Download | Download | ||
| GBA180180100 | 180 | 180 | 100 | 2100 | Download | Download | ||
| GBA200230110 | 200 | 230 | 110 | 2800 | Download | Download | ||
| GBA200230180 | 200 | 230 | 180 | 4050 | Download | Download | ||
| GBA220120118 | 220 | 120 | 118 | 1900 | Download | Download | ||
| GBA260160160 | 260 | 160 | 160 | 4100 | Download | Download | ||
| GBA280180100 | 280 | 180 | 100 | 2800 | Download | Download | ||
| GBA280230110 | 280 | 230 | 110 | 3350 | Download | Download | ||
| GBA330230111 | 330 | 230 | 111 | 3800 | Download | Download | ||
| GBA330230180 | 330 | 230 | 180 | 3600 | Download | Download | ||
| GBA400230110 | 400 | 230 | 110 | 5400 | Download | Download | ||
| GBA400230180 | 400 | 230 | 180 | 6150 | Download | Download | ||
| GBA400230225 | 400 | 230 | 225 | 6800 | Download | Download | ||
| GBA400310110 | 400 | 310 | 110 | 7100 | Download | Download | ||
| GBA400310180 | 400 | 310 | 180 | 8850 | Download | Download | ||
| GBA403312141 | 403 | 312 | 141 | 6700 | Download | Download | ||
| GBA404313227 | 404 | 313 | 227 | 8700 | Download | Download | ||
| GBA600230110 | 600 | 230 | 110 | 7250 | Download | Download | ||
| GBA600310110 | 600 | 310 | 110 | 9250 | Download | Download | ||
| GBA600310180 | 600 | 310 | 180 | 12000 | Download | Download | ||
| GBA600600202 | 600 | 600 | 202 | — | Download | Download |
GBA000504530
- Length (mm)
- 50
- Width (mm)
- 45
- Height (mm)
- 30
- Weight (g)
- 50
- Mounting plate
- Hinges
GBA000586434
- Length (mm)
- 58
- Width (mm)
- 64
- Height (mm)
- 34
- Weight (g)
- 150
- Mounting plate
- Hinges
GBA000758057
- Length (mm)
- 75
- Width (mm)
- 80
- Height (mm)
- 57
- Weight (g)
- 350
- Mounting plate
- Hinges
GBA000986434
- Length (mm)
- 98
- Width (mm)
- 64
- Height (mm)
- 34
- Weight (g)
- 200
- Mounting plate
- Hinges
GBA001156434
- Length (mm)
- 115
- Width (mm)
- 64
- Height (mm)
- 34
- Weight (g)
- 240
- Mounting plate
- Hinges
GBA001258057
- Length (mm)
- 125
- Width (mm)
- 80
- Height (mm)
- 57
- Weight (g)
- 450
- Mounting plate
- Hinges
GBA001506434
- Length (mm)
- 150
- Width (mm)
- 64
- Height (mm)
- 34
- Weight (g)
- 300
- Mounting plate
- Hinges
GBA001758057
- Length (mm)
- 175
- Width (mm)
- 80
- Height (mm)
- 57
- Weight (g)
- 600
- Mounting plate
- Hinges
GBA001856434
- Length (mm)
- 185
- Width (mm)
- 64
- Height (mm)
- 34
- Weight (g)
- 360
- Mounting plate
- Hinges
GBA002508052
- Length (mm)
- 250
- Width (mm)
- 80
- Height (mm)
- 52
- Weight (g)
- 700
- Mounting plate
- Hinges
GBA002508057
- Length (mm)
- 250
- Width (mm)
- 80
- Height (mm)
- 57
- Weight (g)
- 850
- Mounting plate
- Hinges
GBA010010081
- Length (mm)
- 100
- Width (mm)
- 100
- Height (mm)
- 81
- Weight (g)
- 650
- Mounting plate
- Hinges
GBA012212081
- Length (mm)
- 122
- Width (mm)
- 120
- Height (mm)
- 81
- Weight (g)
- 1000
- Mounting plate
- Hinges
GBA012212090
- Length (mm)
- 122
- Width (mm)
- 120
- Height (mm)
- 90
- Weight (g)
- 1050
- Mounting plate
- Hinges
GBA014014091
- Length (mm)
- 140
- Width (mm)
- 140
- Height (mm)
- 91
- Weight (g)
- 1350
- Mounting plate
- Hinges
GBA016010081
- Length (mm)
- 160
- Width (mm)
- 100
- Height (mm)
- 81
- Weight (g)
- 850
- Mounting plate
- Hinges
GBA016016091
- Length (mm)
- 160
- Width (mm)
- 160
- Height (mm)
- 91
- Weight (g)
- 1600
- Mounting plate
- Hinges
GBA020010080
- Length (mm)
- 200
- Width (mm)
- 100
- Height (mm)
- 80
- Weight (g)
- 1050
- Mounting plate
- Hinges
GBA020014090
- Length (mm)
- 200
- Width (mm)
- 140
- Height (mm)
- 90
- Weight (g)
- 1650
- Mounting plate
- Hinges
GBA022012081
- Length (mm)
- 220
- Width (mm)
- 120
- Height (mm)
- 81
- Weight (g)
- 1500
- Mounting plate
- Hinges
GBA022012091
- Length (mm)
- 220
- Width (mm)
- 120
- Height (mm)
- 91
- Weight (g)
- 1650
- Mounting plate
- Hinges
GBA026016090
- Length (mm)
- 260
- Width (mm)
- 160
- Height (mm)
- 90
- Weight (g)
- 2300
- Mounting plate
- Hinges
GBA036012080
- Length (mm)
- 360
- Width (mm)
- 120
- Height (mm)
- 80
- Weight (g)
- 2050
- Mounting plate
- Hinges
GBA036016090
- Length (mm)
- 360
- Width (mm)
- 160
- Height (mm)
- 90
- Weight (g)
- 3000
- Mounting plate
- Hinges
GBA056016090
- Length (mm)
- 560
- Width (mm)
- 160
- Height (mm)
- 90
- Weight (g)
- 4000
- Mounting plate
- Hinges
GBA100230111
- Length (mm)
- 100
- Width (mm)
- 230
- Height (mm)
- 111
- Weight (g)
- 1800
- Mounting plate
- Hinges
GBA180180100
- Length (mm)
- 180
- Width (mm)
- 180
- Height (mm)
- 100
- Weight (g)
- 2100
- Mounting plate
- Hinges
GBA200230110
- Length (mm)
- 200
- Width (mm)
- 230
- Height (mm)
- 110
- Weight (g)
- 2800
- Mounting plate
- Hinges
GBA200230180
- Length (mm)
- 200
- Width (mm)
- 230
- Height (mm)
- 180
- Weight (g)
- 4050
- Mounting plate
- Hinges
GBA220120118
- Length (mm)
- 220
- Width (mm)
- 120
- Height (mm)
- 118
- Weight (g)
- 1900
- Mounting plate
- Hinges
GBA260160160
- Length (mm)
- 260
- Width (mm)
- 160
- Height (mm)
- 160
- Weight (g)
- 4100
- Mounting plate
- Hinges
GBA280180100
- Length (mm)
- 280
- Width (mm)
- 180
- Height (mm)
- 100
- Weight (g)
- 2800
- Mounting plate
- Hinges
GBA280230110
- Length (mm)
- 280
- Width (mm)
- 230
- Height (mm)
- 110
- Weight (g)
- 3350
- Mounting plate
- Hinges
GBA330230111
- Length (mm)
- 330
- Width (mm)
- 230
- Height (mm)
- 111
- Weight (g)
- 3800
- Mounting plate
- Hinges
GBA330230180
- Length (mm)
- 330
- Width (mm)
- 230
- Height (mm)
- 180
- Weight (g)
- 3600
- Mounting plate
- Hinges
GBA400230110
- Length (mm)
- 400
- Width (mm)
- 230
- Height (mm)
- 110
- Weight (g)
- 5400
- Mounting plate
- Hinges
GBA400230180
- Length (mm)
- 400
- Width (mm)
- 230
- Height (mm)
- 180
- Weight (g)
- 6150
- Mounting plate
- Hinges
GBA400230225
- Length (mm)
- 400
- Width (mm)
- 230
- Height (mm)
- 225
- Weight (g)
- 6800
- Mounting plate
- Hinges
GBA400310110
- Length (mm)
- 400
- Width (mm)
- 310
- Height (mm)
- 110
- Weight (g)
- 7100
- Mounting plate
- Hinges
GBA400310180
- Length (mm)
- 400
- Width (mm)
- 310
- Height (mm)
- 180
- Weight (g)
- 8850
- Mounting plate
- Hinges
GBA403312141
- Length (mm)
- 403
- Width (mm)
- 312
- Height (mm)
- 141
- Weight (g)
- 6700
- Mounting plate
- Hinges
GBA404313227
- Length (mm)
- 404
- Width (mm)
- 313
- Height (mm)
- 227
- Weight (g)
- 8700
- Mounting plate
- Hinges
GBA600230110
- Length (mm)
- 600
- Width (mm)
- 230
- Height (mm)
- 110
- Weight (g)
- 7250
- Mounting plate
- Hinges
GBA600310110
- Length (mm)
- 600
- Width (mm)
- 310
- Height (mm)
- 110
- Weight (g)
- 9250
- Mounting plate
- Hinges
GBA600310180
- Length (mm)
- 600
- Width (mm)
- 310
- Height (mm)
- 180
- Weight (g)
- 12000
- Mounting plate
- Hinges
GBA600600202
- Length (mm)
- 600
- Width (mm)
- 600
- Height (mm)
- 202
- Weight (g)
- —
- Mounting plate
- Hinges
Documentation
Mounting plates, hinges, brackets and planning aids for this product line. Every document is issued in German and English.
Hinges
Brackets
- Download
EDELSTAHL-AUSSENLASCHE / STAINLESS STEEL EXTERNAL BRACKET
XX-DOK-MONT-SS · 1 page · DE / EN
Cable gland and terminal plan
- Request
Cable gland and terminal plan
Allocation planning
- Download
Belegungsplanung / Allocation planning
12 pages · DE / EN
Collections
- Download
MONTAGEBLÄTTER / MOUNTING SHEETS
4 pages · DE / EN
Accessories
Cable Glands in diverse materials, EX and EMC solutions available
External earthing M4 / M6, stainless steel
Wall brackets M4 / M6, steel, galvanized
Terminal block manufacturer of your choice
Inner joints stainless steel A2
External joints die-cast aluminum
Mounting Plate, sheet steel, galvanized
Support Rail 35 mm, steel, galvanized
Support Rail 32 mm, steel, galvanized
Support Rail 15 mm, steel, galvanized
Lid Seal (optional: silicone or EMC seal)
Cover Screws (optional: sealable or hexagon socket)
Frequently Asked Questions
Robust, corrosion-resistant aluminium enclosures for demanding industrial environments and machine applications.
