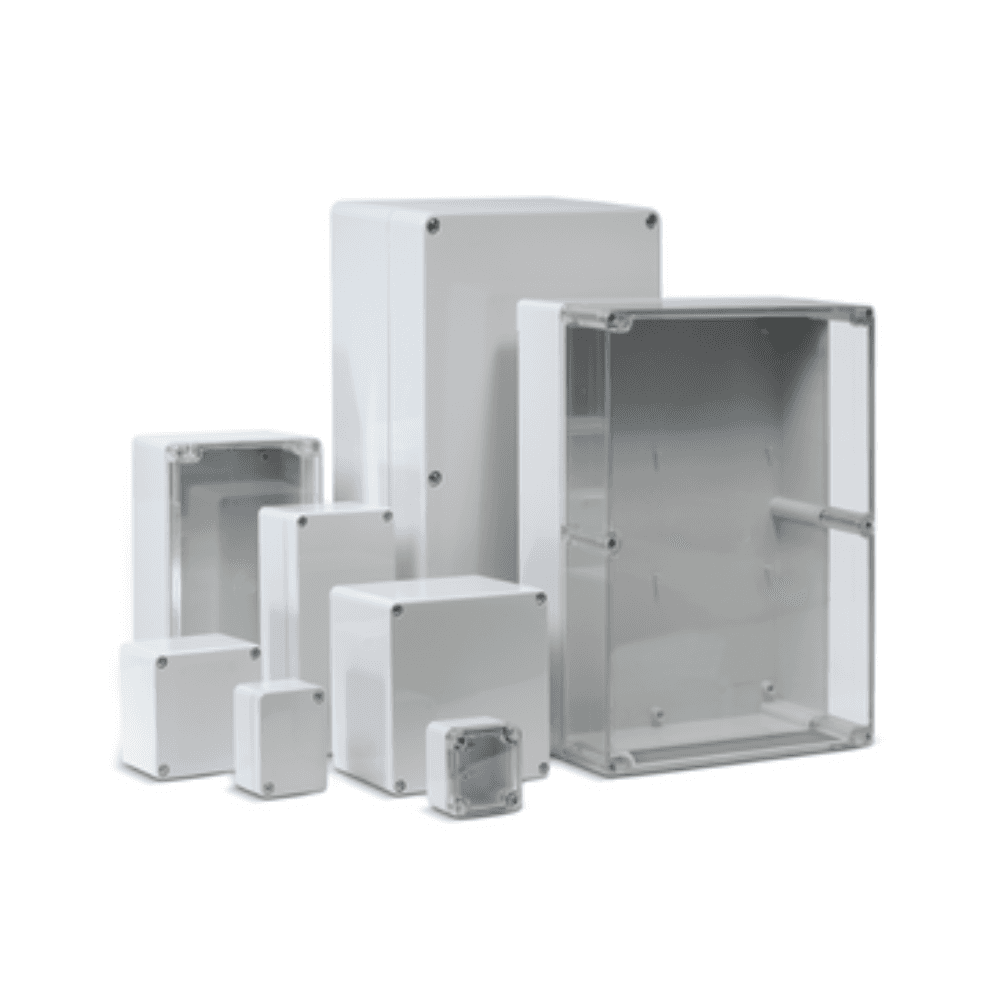

Thermoplastic Enclosures
Thermoplastic enclosure family based on GBM (polycarbonate) and GBT (ABS), suitable for compact electrical and electronic assemblies. The range supports opaque and transparent lid concepts and is optimized for lightweight industrial applications.
The matrix includes 22 size families from 52 x 50 x 35 mm up to 360 x 200 x 150 mm, with PDF drawings and 3D STEP models available.
Weight
n/a
Material
ABS / Polycarbonate
Color
RAL7035
Package Dimensions
52 x 50 x 35 to 360 x 200 x 150 mm
HS Code
39269099
Special Options
Transparent lid (T), special seals
TECHNICAL DATASHEET Additional Information
Material Composition
GBM polycarbonate and GBT ABS
Protection
Thermoplastic housing platform for compact electrical assemblies
Surface
Thermoplastic enclosure surface, captive quick-release lid screws
Primary Use Case
Compact electrical and electronic assemblies
Operating Temperature
GBT: -40 C to +80 C, GBM: -40 C to +120 C
Protection Rating
IP65 acc. to DIN EN 60529
Earthing
Not integrated as standard (non-metallic housing); project-specific if required
RoHS Compliance
RoHS conform
REACH Compliance
REACH conform
Compatibility
Shared GBM/GBT matrix coding for easy selection and replacement
| XINDUX Items | Length (mm) | Width (mm) | Height (mm) | Weight (g) | Mounting Plate | Hinges | 3D Models |
|---|---|---|---|---|---|---|---|
| GBM000525035 | 52 | 50 | 35 | 40 | ✔ | ✖ | Download |
| GBM000525035T | 52 | 50 | 35 | 40 | ✔ | ✖ | - |
| GBM000655035 | 65 | 50 | 35 | 50 | ✔ | ✖ | Download |
| GBM000655035T | 65 | 50 | 35 | 50 | ✔ | ✖ | - |
| GBM000828055 | 82 | 80 | 55 | 140 | ✔ | ✔ | Download |
| GBM000828055T | 82 | 80 | 55 | 140 | ✔ | ✔ | - |
| GBM000828085 | 82 | 80 | 85 | 170 | ✔ | ✔ | Download |
| GBM000828085T | 82 | 80 | 85 | 170 | ✔ | ✔ | - |
| GBM001208055 | 120 | 80 | 55 | 180 | ✔ | ✔ | Download |
| GBM001208055T | 120 | 80 | 55 | 180 | ✔ | ✔ | - |
| GBM001208085 | 120 | 80 | 85 | 225 | ✔ | ✔ | Download |
| GBM001208085T | 120 | 80 | 85 | 225 | ✔ | ✔ | - |
| GBM012212055 | 122 | 120 | 55 | 240 | ✔ | ✔ | Download |
| GBM012212055T | 122 | 120 | 55 | 240 | ✔ | ✔ | - |
| GBM012212085 | 122 | 120 | 85 | 295 | ✔ | ✔ | Download |
| GBM012212085T | 122 | 120 | 85 | 295 | ✔ | ✔ | - |
| GBM122120105 | 122 | 120 | 105 | 350 | ✔ | ✔ | Download |
| GBM122120105T | 122 | 120 | 105 | 350 | ✔ | ✔ | - |
| GBM001608055 | 160 | 80 | 55 | 225 | ✔ | ✔ | Download |
| GBM001608055T | 160 | 80 | 55 | 225 | ✔ | ✔ | - |
| GBM001608085 | 160 | 80 | 85 | 275 | ✔ | ✔ | Download |
| GBM001608085T | 160 | 80 | 85 | 275 | ✔ | ✔ | - |
| GBM016012090 | 160 | 120 | 90 | 400 | ✔ | ✔ | Download |
| GBM016012090T | 160 | 120 | 90 | 400 | ✔ | ✔ | - |
| GBM160120140 | 160 | 120 | 140 | 600 | ✔ | ✔ | Download |
| GBM160120140T | 160 | 120 | 140 | 600 | ✔ | ✔ | - |
| GBM020012075 | 200 | 120 | 75 | 400 | ✔ | ✔ | Download |
| GBM020012075T | 200 | 120 | 75 | 400 | ✔ | ✔ | - |
| GBM020012090 | 200 | 120 | 90 | 475 | ✔ | ✔ | Download |
| GBM020012090T | 200 | 120 | 90 | 475 | ✔ | ✔ | - |
| GBM020015075 | 200 | 150 | 75 | 525 | ✔ | ✔ | Download |
| GBM020015075T | 200 | 150 | 75 | 525 | ✔ | ✔ | - |
| GBM240120100 | 240 | 120 | 100 | 520 | ✔ | ✔ | Download |
| GBM240120100T | 240 | 120 | 100 | 520 | ✔ | ✔ | - |
| GBM024016090 | 240 | 160 | 90 | 650 | ✔ | ✔ | Download |
| GBM024016090T | 240 | 160 | 90 | 650 | ✔ | ✔ | - |
| GBM240160120 | 240 | 160 | 120 | 795 | ✔ | ✔ | Download |
| GBM240160120T | 240 | 160 | 120 | 795 | ✔ | ✔ | - |
| GBM025016090 | 250 | 160 | 90 | 680 | ✔ | ✔ | - |
| GBM025016090T | 250 | 160 | 90 | 680 | ✔ | ✔ | - |
| GBM250160120 | 250 | 160 | 120 | 810 | ✔ | ✔ | - |
| GBM250160120T | 250 | 160 | 120 | 810 | ✔ | ✔ | - |
| GBM030023086 | 300 | 300 | 86 | 965 | ✔ | ✔ | - |
| GBM030023086T | 300 | 230 | 86 | 965 | ✔ | ✔ | - |
| GBM300230110 | 300 | 230 | 110 | 1095 | ✔ | ✔ | Download |
| GBM300230110T | 300 | 230 | 110 | 1095 | ✔ | ✔ | - |
| GBM360200150 | 360 | 200 | 150 | 1550 | ✔ | ✔ | Download |
| GBM360200150T | 360 | 200 | 150 | 1550 | ✔ | ✔ | - |
ACCESSORIES
Faqs
Compact electrical/electronic assemblies using a thermoplastic platform combining GBM (polycarbonate) and GBT (ABS) size families.
22 sizes, from 52 × 50 × 35 mm to 360 × 200 × 150 mm.
Yes, availability is listed as in stock.
IP65 (DIN EN 60529).
Foamed lid seal, the FAQ also references foamed PUR seals with captive stainless steel quick-release lid screws.
GBM = polycarbonate (higher temperature capability), GBT = ABS (standard thermoplastic applications).
GBT (ABS): -40 °C to +80 °C; GBM (PC): -40 °C to +120 °C.
Yes, transparent lid versions are available with suffix “T”.
Standard is RAL7035; special colors on request.
Yes, matrix models include PDF drawings and STEP files.
RoHS and REACH conform.
Use GBM (PC) for higher temperature capability (up to +120 °C); verify the specific internal components and heat load.
Yes, custom enclosure versions, prototypes, and special finishes are delivered in line with customer drawings and compliance documentation.
Enables visual inspection of indicators/displays without opening the enclosure, useful for serviceability and process monitoring.
Material choice (ABS vs PC), size (L/W/H), lid type (opaque vs “T”), and any special color requirement.
IP65 requirement, temperature range, lid choice, and internal space for components/cable bend radius.
Yes, use the provided STEP models for enclosure integration and mounting design.
The FAQ references captive stainless steel quick-release lid screws (maintenance-friendly concept).
Choosing ABS when the application needs PC temperature margin, avoid by selecting material per operating range.
Provide environment specs (IP65 + temperature), material choice (ABS/PC), lid type (opaque/T), size, and entry layout if machining is requested.
