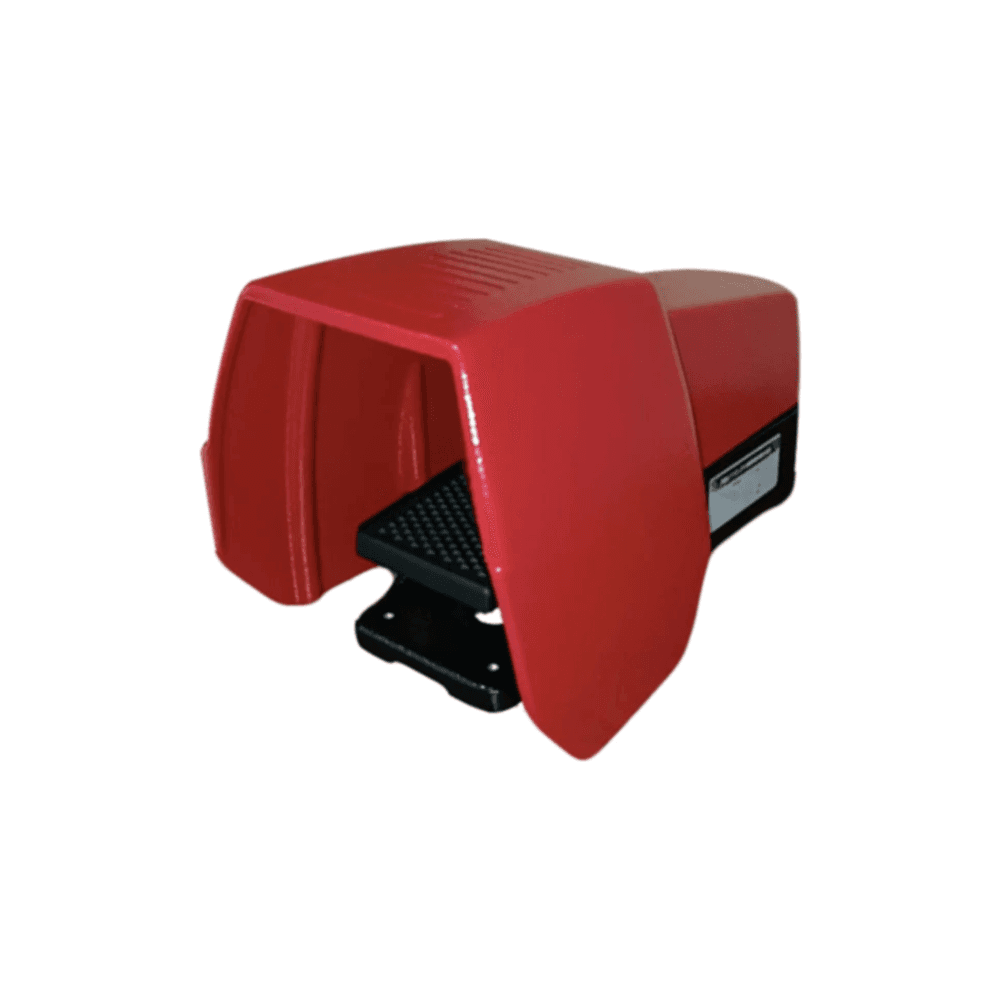

Single Foot Switch
The Single Foot Switch is designed for reliable use in demanding industrial environments. The robust housing ensures a long service life and stable operation in daily use. The protective cover protects the pedal and foot from impact and supports safe, controlled operation.
Whether in mechanical engineering, automation, or manufacturing: our single-pedal standard foot switches are versatile and available in various designs at short notice.
Weight
2.2 kg
Material
Aluminum 6000
Dimensions
275 x 150 x 250 mm
Colour
Red, Yellow & Black
HS Code
8536.50.07.00.00
Warranty
5 years
Login to Download Certifications
TECHNICAL DATASHEET Additional Information
Material Composition
Aluminum 6000
Operating Weight
2.2 kg
Primary Use Case
Machine Building / Automation / HMI operator stations
Operating Temperature
-40 C to +80 C
Protection (contact block)
IP20 (terminals), IP40 (contacts)
Mechanical endurance
20 million operating cycles
Max actuation frequency
600 cycles/hour
Safety application
Use positive-opening NC contacts per EN ISO 14119
RoHS Compliance
RoHS EU Directive 2011/65/EU
REACH Compliance
REACH Regulation 1907/2006/EC
Electrical baseline:
Ith 10 A, Uimp 6 kV, Ue up to 400 Vac, Ie up to 4 A (configuration dependent)
Certification
IMQ, UL/cULus, CCC, EAC, EAC declaration, EU Declaration, UKCA Declaration & Core standards/directives
FAQs
The platform is identical; only the number of independent foot actuators changes, 1 command for the Single, 2 for the Double, and 3 for the Triple pedal, with housings sized 155 × 150 × 265 mm, 275 × 150 × 250 mm, and 407 × 150 × 250 mm respectively.
Always state the series prefix plus the color, e.g., XX-PDL1140 (Black), XX-PDL1120 (Yellow), XX-PDL1110 (Red).
Engineered for machine building, automation, and operator-station environments, the pedals withstand −40 °C to +80 °C while the protective shroud guards against impact, dust, and splashing.
Mechanical endurance 20 million cycles, maximum actuation frequency 3,600 operations/hour; Ith 10 A, Uimp 6 kV, and nominal voltages up to 400 VAC/4 A depending on contact configuration.
Contact block protection is IP20/IP40; certifications include IMQ CA02.06217, UL/cULus E131787, CCC 2024010305656752, EAC RU D-IT.PA07.B.37848/24, plus EU and UKCA Declarations of Conformity.
Quote EN 60947-1, EN 60947-5-1, EN ISO 14119,
The base platform accepts standard contact blocks and allows you to match the contact rating (400 VAC/4A) to the expected load while keeping the same pedal housing.
The aluminum shroud keeps the operator safe from stray hits and prevents debris ingress, so you can specify it for machine-room operator stations without additional guards.
The datasheet clarifies that the listed values apply at the series level; only offer variant-specific tests when the customer requests a bespoke configuration.
Emphasize the 20 million-cycle rating and the low-maintenance aluminum construction to reinforce the long service life and reduced TCO.
While the pedals cover broad industrial conditions, confirm ambient humidity/dust levels before specifying if a higher IP rating, seals, or custom guards are needed beyond the standard IP20/40 contact setup.
Yes, each pdf covers EN, UL/cULus, CCC, EAC and UKCA requirements, so you can circulate it in Europe, the UK and approval-driven export markets without preparing custom versions.
Pair the pedal with safety-rated contact blocks, positive-opening contacts, and a defined mounting plate; document the pedal series code plus the load path in the machine safety folder.
Robust aluminum housing, identical ergonomics for single/double/triple options, and direct compatibility with existing operator stations make these pedals easy to integrate and standardize across production lines.
