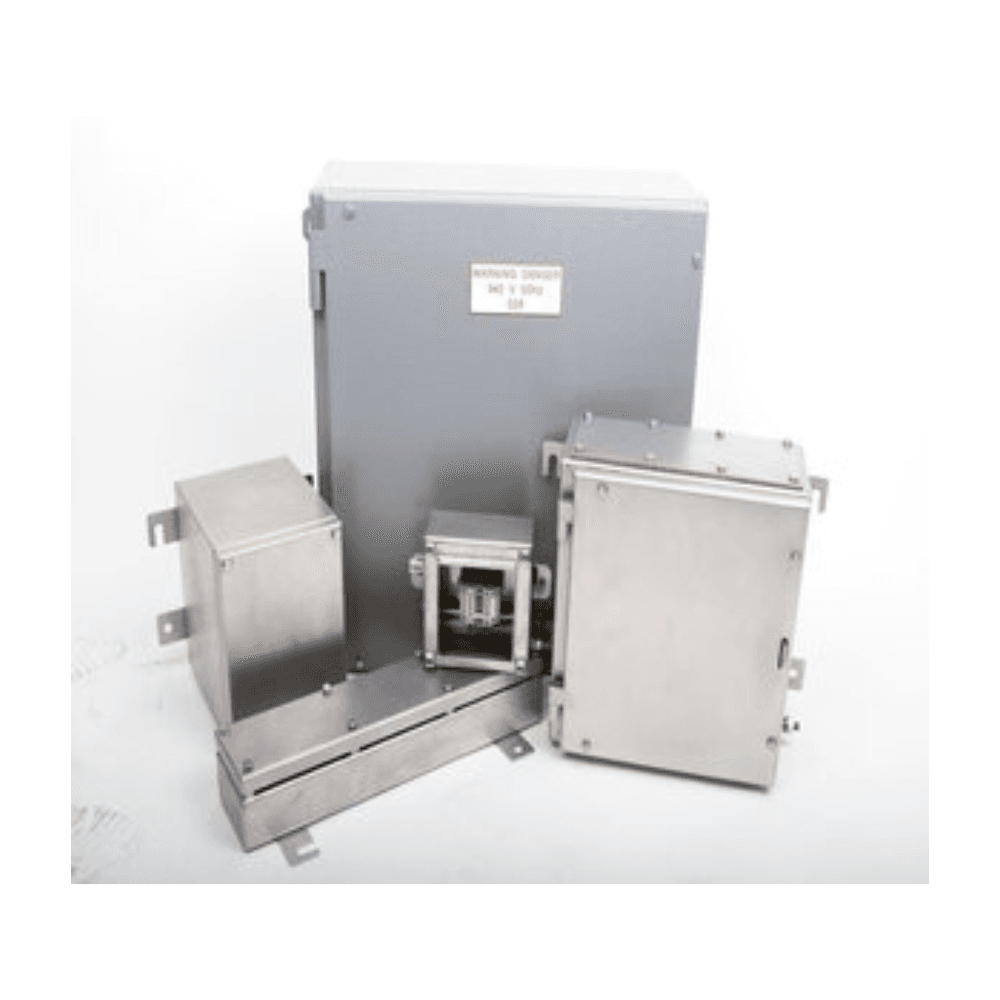

Stainless Steel Enclosures (V4A)
Solicitar presupuesto
V4A stainless enclosure series for corrosive and hygienic environments, based on 1.4404 / 316L material concept. Designed for advanced corrosion resistance with project-oriented option packages including Ex and fire-rated variants.
The matrix includes 18 sizes from 100 x 100 x 61 mm up to 500 x 400 x 161 mm, with PDF drawings and 3D STEP models available.
- Weight
- n/a
- Material
- Stainless steel V4A (1.4404 / 316L)
- Color
- Stainless steel
- Package Dimensions
- 100 x 100 x 61 to 500 x 400 x 161 mm
- HS Code
- 85369030
- Special Options
- Ex, fire-rated, custom sizes
TECHNICAL DATASHEETAdditional Information
- Material Composition
- Stainless steel 1.4404 / 316L
- Protection
- High protection stainless platform for corrosive and hygienic applications
- Surface
- Orbital finish, electropolished / glass bead blasted / painted on request
- Primary Use Case
- Corrosive process areas / Hygiene-focused applications
- Operating Temperature
- Project-specific according to final approved configuration
- Protection Rating
- IP66 / IP67 / IP68 acc. to DIN EN 60529 (IP66 standard)
- Earthing
- Internal / external earthing spigot M10
- RoHS Compliance
- Per project specification
- REACH Compliance
- Per project specification
- Compatibility
- Standardized stainless matrix with V4A execution for higher corrosion demand
Available Sizes
18 standard sizes, each with a 2D drawing and 3D model.
18 of 18
| Mounting Plate | Hinges | Drawings | 3D Models | |||||
|---|---|---|---|---|---|---|---|---|
| GB4S010010061 | 100 | 100 | 61 | — | Download | Download | ||
| GB4S015010061 | 150 | 100 | 61 | — | Download | Download | ||
| GB4S015015081 | 150 | 150 | 81 | — | Download | Download | ||
| GB4S020010061 | 200 | 100 | 61 | — | Download | Download | ||
| GB4S020020081 | 200 | 200 | 81 | — | Download | Download | ||
| GB4S030015081 | 300 | 150 | 81 | — | Download | Download | ||
| GB4S030020081 | 300 | 200 | 81 | — | Download | Download | ||
| GB4S040015081 | 400 | 150 | 81 | — | Download | Download | ||
| GB4S200200121 | 200 | 200 | 121 | — | Download | Download | ||
| GB4S300200121 | 300 | 200 | 121 | — | Download | Download | ||
| GB4S300300121 | 300 | 300 | 121 | — | Download | Download | ||
| GB4S300300161 | 300 | 300 | 161 | — | Download | Download | ||
| GB4S380380161 | 380 | 380 | 161 | — | Download | Download | ||
| GB4S400200121 | 400 | 200 | 121 | — | Download | Download | ||
| GB4S400300161 | 400 | 300 | 161 | — | Download | Download | ||
| GB4S500300161 | 500 | 300 | 161 | — | Download | Download | ||
| GB4S500400161 | 500 | 400 | 161 | — | Download | Download | ||
| GB4S600200121 | 600 | 200 | 121 | — | Download | Download |
GB4S010010061
100 × 100 × 61 mm
Mounting plate HingesGB4S015010061
150 × 100 × 61 mm
Mounting plate HingesGB4S015015081
150 × 150 × 81 mm
Mounting plate HingesGB4S020010061
200 × 100 × 61 mm
Mounting plate HingesGB4S020020081
200 × 200 × 81 mm
Mounting plate HingesGB4S030015081
300 × 150 × 81 mm
Mounting plate HingesGB4S030020081
300 × 200 × 81 mm
Mounting plate HingesGB4S040015081
400 × 150 × 81 mm
Mounting plate HingesGB4S200200121
200 × 200 × 121 mm
Mounting plate HingesGB4S300200121
300 × 200 × 121 mm
Mounting plate HingesGB4S300300121
300 × 300 × 121 mm
Mounting plate HingesGB4S300300161
300 × 300 × 161 mm
Mounting plate HingesGB4S380380161
380 × 380 × 161 mm
Mounting plate HingesGB4S400200121
400 × 200 × 121 mm
Mounting plate HingesGB4S400300161
400 × 300 × 161 mm
Mounting plate HingesGB4S500300161
500 × 300 × 161 mm
Mounting plate HingesGB4S500400161
500 × 400 × 161 mm
Mounting plate HingesGB4S600200121
600 × 200 × 121 mm
Mounting plate Hinges
Accessories
Cable Glands in diverse materials, EX and EMC solutions available
External earthing M4 / M6, stainless steel
Wall brackets M4 / M6, steel, galvanized
Terminal block manufacturer of your choice
Inner joints stainless steel A2
External joints die-cast aluminum
Mounting Plate, sheet steel, galvanized
Support Rail 35 mm, steel, galvanized
Support Rail 32 mm, steel, galvanized
Support Rail 15 mm, steel, galvanized
Lid Seal (optional: silicone or EMC seal)
Cover Screws (optional: sealable or hexagon socket)
Frequently Asked Questions
V4A stainless enclosures for corrosive and hygiene-focused environments, based on 1.4404 / 316L.
