Industrial Enclosures

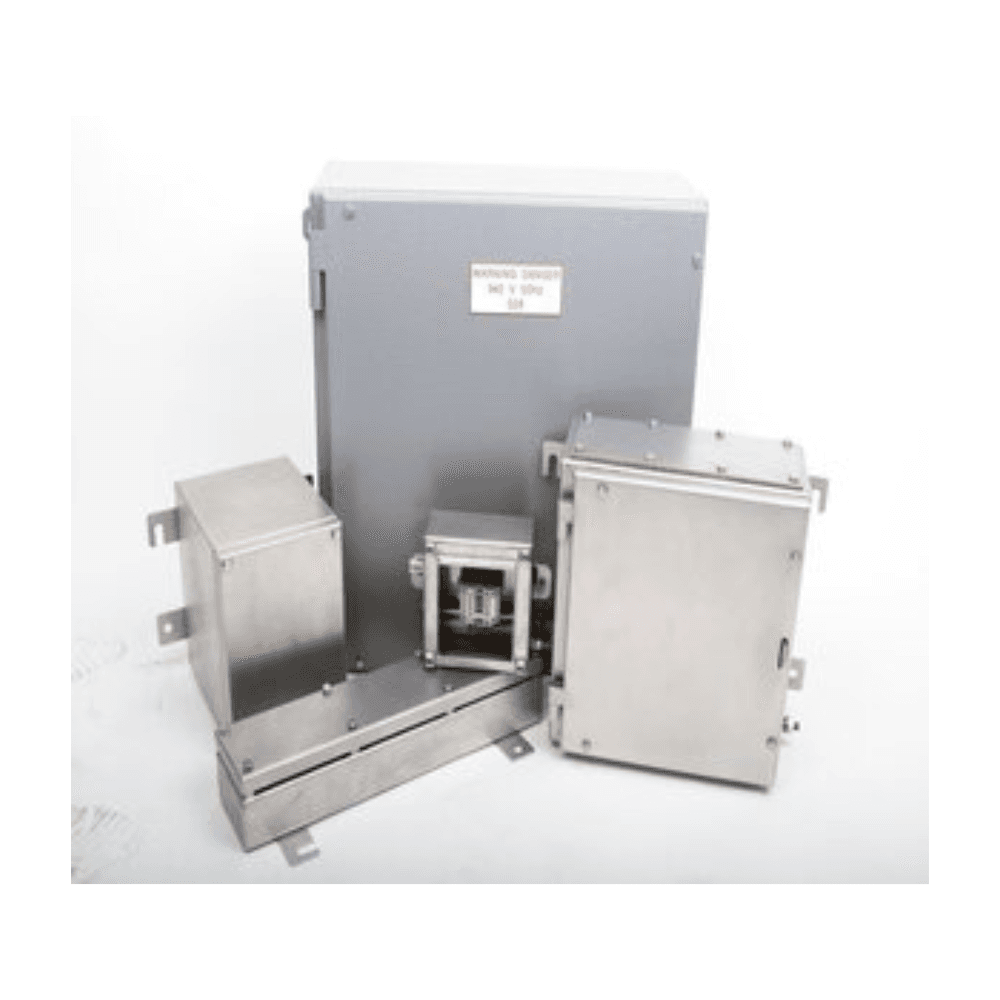

Stainless Steel Enclosures (V4A)

Request a quote
V4A stainless enclosure series for corrosive and hygienic environments, based on 1.4404 / 316L material concept. Designed for advanced corrosion resistance with project-oriented option packages including Ex and fire-rated variants. The matrix includes 18 sizes from 100 x 100 x 61 mm up to 500 x 400 x 161 mm, with PDF drawings and 3D STEP models available.
Weight
n/a
Material
Stainless steel V4A (1.4404 / 316L)
Colour
Stainless steel
Package Dimensions
100 x 100 x 61 to 500 x 400 x 161 mm
HS Code
85369030
Special Options
Ex, fire-rated, custom sizes
TECHNICAL DATASHEET

Additional Information

Material Composition
Stainless steel 1.4404 / 316L
Protection
High protection stainless platform for corrosive and hygienic applications
Surface
Orbital finish, electropolished / glass bead blasted / painted on request
Primary Use Case
Corrosive process areas / Hygiene-focused applications
Operating Temperature
Project-specific according to final approved configuration
Protection Rating
IP66 / IP67 / IP68 acc. to DIN EN 60529 (IP66 standard)
Earthing
Internal / external earthing spigot M10
RoHS Compliance
Per project specification
REACH Compliance
Per project specification
Compatibility
Standardized stainless matrix with V4A execution for higher corrosion demand

Available sizes

18 standard sizes, each with a 2D drawing and 3D model.

18 of 18

  • GB4S010010061

    Length (mm)
    100
    Width (mm)
    100
    Height (mm)
    61
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

  • GB4S015010061

    Length (mm)
    150
    Width (mm)
    100
    Height (mm)
    61
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

  • GB4S015015081

    Length (mm)
    150
    Width (mm)
    150
    Height (mm)
    81
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

  • GB4S020010061

    Length (mm)
    200
    Width (mm)
    100
    Height (mm)
    61
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

  • GB4S020020081

    Length (mm)
    200
    Width (mm)
    200
    Height (mm)
    81
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

  • GB4S030015081

    Length (mm)
    300
    Width (mm)
    150
    Height (mm)
    81
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

  • GB4S030020081

    Length (mm)
    300
    Width (mm)
    200
    Height (mm)
    81
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

  • GB4S040015081

    Length (mm)
    400
    Width (mm)
    150
    Height (mm)
    81
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

  • GB4S200200121

    Length (mm)
    200
    Width (mm)
    200
    Height (mm)
    121
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

  • GB4S300200121

    Length (mm)
    300
    Width (mm)
    200
    Height (mm)
    121
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

  • GB4S300300121

    Length (mm)
    300
    Width (mm)
    300
    Height (mm)
    121
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

  • GB4S300300161

    Length (mm)
    300
    Width (mm)
    300
    Height (mm)
    161
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

  • GB4S380380161

    Length (mm)
    380
    Width (mm)
    380
    Height (mm)
    161
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

  • GB4S400200121

    Length (mm)
    400
    Width (mm)
    200
    Height (mm)
    121
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

  • GB4S400300161

    Length (mm)
    400
    Width (mm)
    300
    Height (mm)
    161
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

  • GB4S500300161

    Length (mm)
    500
    Width (mm)
    300
    Height (mm)
    161
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

  • GB4S500400161

    Length (mm)
    500
    Width (mm)
    400
    Height (mm)
    161
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

  • GB4S600200121

    Length (mm)
    600
    Width (mm)
    200
    Height (mm)
    121
    Weight (g)
    —
    Mounting plate
    Hinges
    2D drawing3D model

Accessories

Frequently Asked Questions

V4A stainless enclosures for corrosive and hygiene-focused environments, based on 1.4404 / 316L.
