Industrial Enclosures

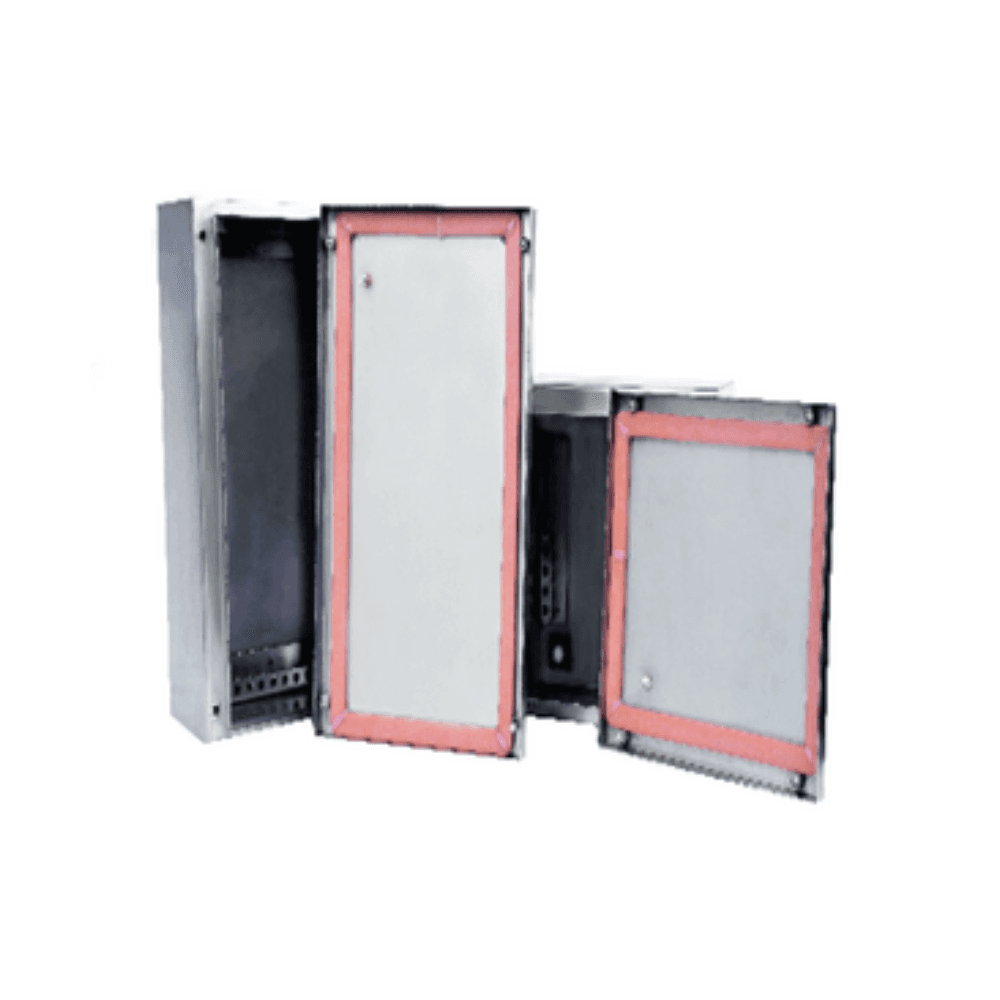

Stainless Steel Enclosures (V2A)

Request a quote
Stainless steel enclosure range for robust mechanical environments and corrosion-focused industrial applications. Variants with mounting bosses and with/without mounting hole are available, with accessory support for mounting and hinges. The matrix includes 18 sizes from 100 x 100 x 61 mm up to 600 x 200 x 121 mm, with PDF drawings and 3D STEP models available
Weight
n/a
Material
Stainless steel V2A (1.4301)
Colour
Stainless steel
Package Dimensions
100 x 100 x 61 to 500 x 400 x 161 mm
HS Code
85369030
Special Options
Custom sizes, Ex option
TECHNICAL DATASHEET

Additional Information

Material Composition
Stainless steel 1.4301 / 304
Protection
Multi-class protection concept for harsh environments
Surface
Sanded surface (grain 240), other surfaces on request
Primary Use Case
Industrial control / Harsh environments / Corrosion-sensitive installations
Operating Temperature
-40 °C to +80 °C (according to extracted technical specification)
Protection Rating
IP66 / IP67 / IP68 / IP69 acc. to DIN EN 60529
Earthing
Protective conductor concept according to project and assembly design
RoHS Compliance
Per model datasheet
REACH Compliance
Per model datasheet
Compatibility
Matrix-based standard stainless sizes for faster retrofit and replacement

Available sizes

18 standard sizes, each with a 2D drawing and 3D model.

18 of 18

  • GBS010010061

    Length (mm)
    100
    Width (mm)
    100
    Height (mm)
    61
    Weight (g)
    597
    Mounting plate
    Hinges
    2D drawing3D model

  • GBS015010061

    Length (mm)
    150
    Width (mm)
    100
    Height (mm)
    61
    Weight (g)
    845
    Mounting plate
    Hinges
    2D drawing3D model

  • GBS015015081

    Length (mm)
    150
    Width (mm)
    150
    Height (mm)
    81
    Weight (g)
    1190
    Mounting plate
    Hinges
    2D drawing3D model

  • GBS020010061

    Length (mm)
    200
    Width (mm)
    100
    Height (mm)
    61
    Weight (g)
    985
    Mounting plate
    Hinges
    2D drawing3D model

  • GBS020020081

    Length (mm)
    200
    Width (mm)
    200
    Height (mm)
    81
    Weight (g)
    1910
    Mounting plate
    Hinges
    2D drawing3D model

  • GBS030015081

    Length (mm)
    300
    Width (mm)
    150
    Height (mm)
    81
    Weight (g)
    1990
    Mounting plate
    Hinges
    2D drawing3D model

  • GBS030020081

    Length (mm)
    300
    Width (mm)
    200
    Height (mm)
    81
    Weight (g)
    2560
    Mounting plate
    Hinges
    2D drawing3D model

  • GBS040015081

    Length (mm)
    400
    Width (mm)
    150
    Height (mm)
    81
    Weight (g)
    2630
    Mounting plate
    Hinges
    2D drawing3D model

  • GBS200200121

    Length (mm)
    200
    Width (mm)
    200
    Height (mm)
    121
    Weight (g)
    2230
    Mounting plate
    Hinges
    2D drawing3D model

  • GBS300200121

    Length (mm)
    300
    Width (mm)
    200
    Height (mm)
    121
    Weight (g)
    2975
    Mounting plate
    Hinges
    2D drawing3D model

  • GBS300300121

    Length (mm)
    300
    Width (mm)
    300
    Height (mm)
    121
    Weight (g)
    4035
    Mounting plate
    Hinges
    2D drawing3D model

  • GBS300300161

    Length (mm)
    300
    Width (mm)
    300
    Height (mm)
    161
    Weight (g)
    4545
    Mounting plate
    Hinges
    2D drawing3D model

  • GBS380380161

    Length (mm)
    380
    Width (mm)
    380
    Height (mm)
    161
    Weight (g)
    6350
    Mounting plate
    Hinges
    2D drawing3D model

  • GBS400200121

    Length (mm)
    400
    Width (mm)
    200
    Height (mm)
    121
    Weight (g)
    4080
    Mounting plate
    Hinges
    2D drawing3D model

  • GBS400300161

    Length (mm)
    400
    Width (mm)
    300
    Height (mm)
    161
    Weight (g)
    5480
    Mounting plate
    Hinges
    2D drawing3D model

  • GBS500300161

    Length (mm)
    500
    Width (mm)
    300
    Height (mm)
    161
    Weight (g)
    6560
    Mounting plate
    Hinges
    2D drawing3D model

  • GBS500400161

    Length (mm)
    500
    Width (mm)
    400
    Height (mm)
    161
    Weight (g)
    8120
    Mounting plate
    Hinges
    2D drawing3D model

  • GBS600200121

    Length (mm)
    600
    Width (mm)
    200
    Height (mm)
    121
    Weight (g)
    5205
    Mounting plate
    Hinges
    2D drawing3D model

Accessories

Frequently Asked Questions

GBS covers stainless steel industrial enclosure formats in V2A.
