Sheet Steel Enclosures

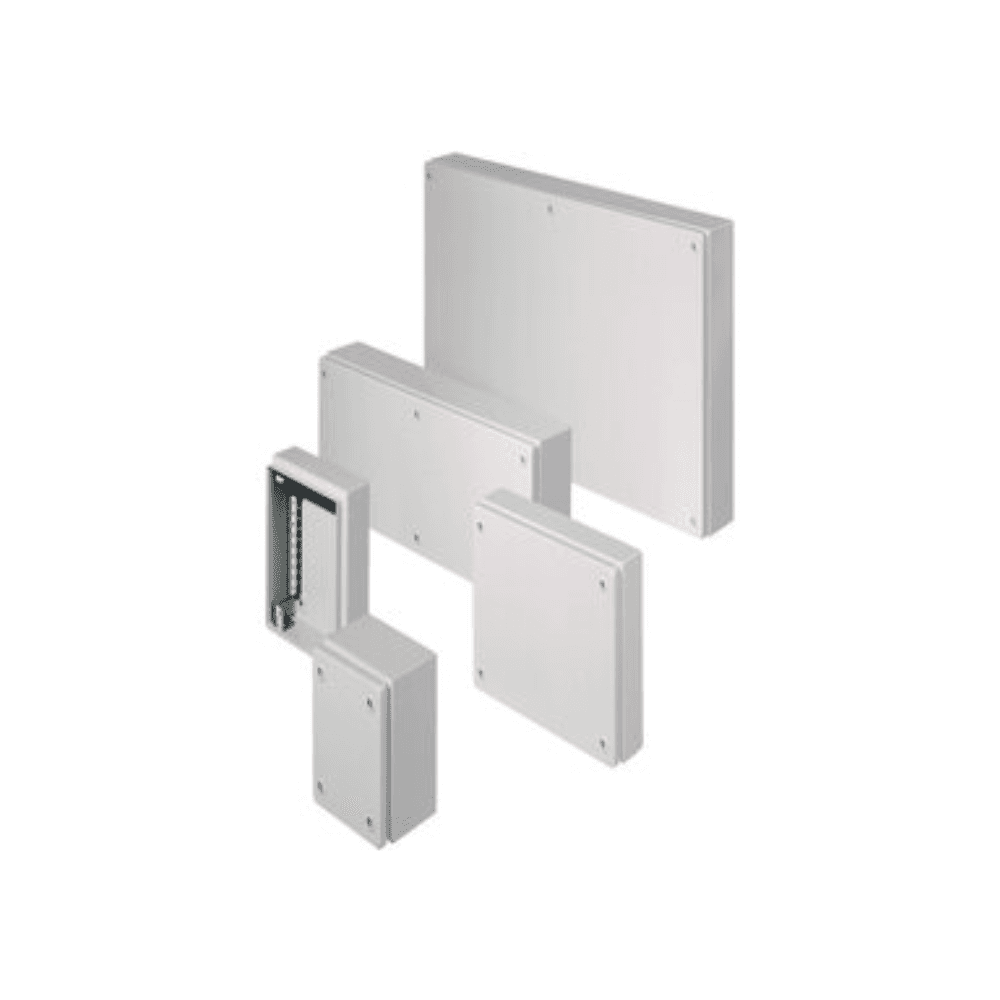

Sheet steel junction enclosures for robust industrial use, based on established geometry classes with practical depth variants (80 mm and 120 mm). Suitable for distribution and retrofit projects with configurable entries and optional populated execution.
The matrix includes 24 sizes from 150 x 150 x 80 mm up to 800 x 400 x 120 mm, with PDF drawings and 3D STEP models available.
Weight
n/a
Material
Sheet steel
Color
RAL7035
Package Dimensions
150 x 150 x 80 to 800 x 400 x 120 mm
HS Code
73262090
Special Options
Empty/populated, custom cut-outs
TECHNICAL DATASHEET Additional Information
Material Composition
Sheet steel, material thickness 1.25 mm (technical sheet reference)
Protection
Multi-edged protection channel construction for mechanical robustness
Surface
Powder-coated surface in RAL7035
Primary Use Case
Industrial junction boxes / Wiring distribution / Retrofit projects
Operating Temperature
Project-specific (not published as fixed range in current source package)
Protection Rating
IP66 / NEMA 4
Earthing
Protective conductor connection points available (project configuration)
RoHS Compliance
Per project specification
REACH Compliance
Per project specification
Compatibility
Geometry-class matrix suitable for replacement and retrofit in existing plants
| XINDUX Items | Length (mm) | Width (mm) | Height (mm) | Drawings | 3D Models |
|---|---|---|---|---|---|
| GBSB010010061 | 100 | 100 | 61 | Download | Download |
| GBSB015010061 | 150 | 100 | 61 | Download | Download |
| GBSB015015081 | 150 | 150 | 81 | Download | Download |
| GBS020010061GBSB020010061 | 200 | 100 | 61 | Download | Download |
| GBSB020020081 | 200 | 200 | 81 | Download | Download |
| GBSB030015081 | 300 | 150 | 81 | Download | Download |
| GBSB030020081 | 300 | 200 | 81 | Download | Download |
| GBSB040015081 | 400 | 150 | 81 | Download | Download |
| GBSB200200121 | 200 | 200 | 121 | Download | Download |
| GBSB300200121 | 300 | 200 | 121 | Download | Download |
| GBSB300300121 | 300 | 300 | 121 | Download | Download |
| GBSB300300161 | 300 | 300 | 161 | Download | Download |
| GBSB380380161 | 380 | 380 | 161 | Download | Download |
| GBSB400200121 | 400 | 200 | 121 | Download | Download |
| GBSB400300161 | 400 | 300 | 161 | Download | Download |
| GBSB500300161 | 500 | 300 | 161 | Download | Download |
| GBSB500400161 | 500 | 400 | 161 | Download | Download |
| GBSB600200121 | 600 | 200 | 121 | Download | Download |
ACCESSORIES
FAQs
Sheet steel junction enclosures for robust industrial use, wiring distribution, and retrofit projects.
24 geometry classes in the matrix.
From 150 × 150 × 80 mm up to 800 × 400 × 120 mm.
Typical depths are 80 mm and 120 mm.
Availability is described as project stock / on request (short-term available).
Yes, GBSB is described as a platform with configurable entries; entry patterns and cut-outs are project-configurable.
Yes, empty or populated execution depending on project, including terminal requirements.
Yes, matrix indicates PDF and STEP availability.
The format follows GBSB + L/W/H coding, e.g., GBSB400200120.
Use 80 mm for compact wiring/junction tasks; choose 120 mm for expanded internal build-up and larger terminals.
Yes, the overview explicitly positions it for retrofit-oriented replacement and modernization.
Yes, custom enclosures and prototypes are possible to customer drawing.
Compliance is per project specification, so requirements must be defined at RFQ stage.
Entry preparation is project-configurable, provide the entry layout and gland list for review.
Target size, depth class (80/120), entry layout, internal build-up (terminals/rails), and any required markings.
Full article code (GBSB + L/W/H), plus whether the enclosure is empty or populated, and any machining notes.
Yes, populated execution is supported; define terminals/entries and arrangement requirements.
Yes, PDF/STEP availability supports documentation workflows, and project spec defines final doc scope.
Underestimating depth needed for wiring bend radius and terminal stacking, choose 120 mm when build-up is dense.
Use a standard geometry class where possible and provide a complete entry + terminal requirement set up front (reduces iteration).
