Ex Aluminum Enclosures

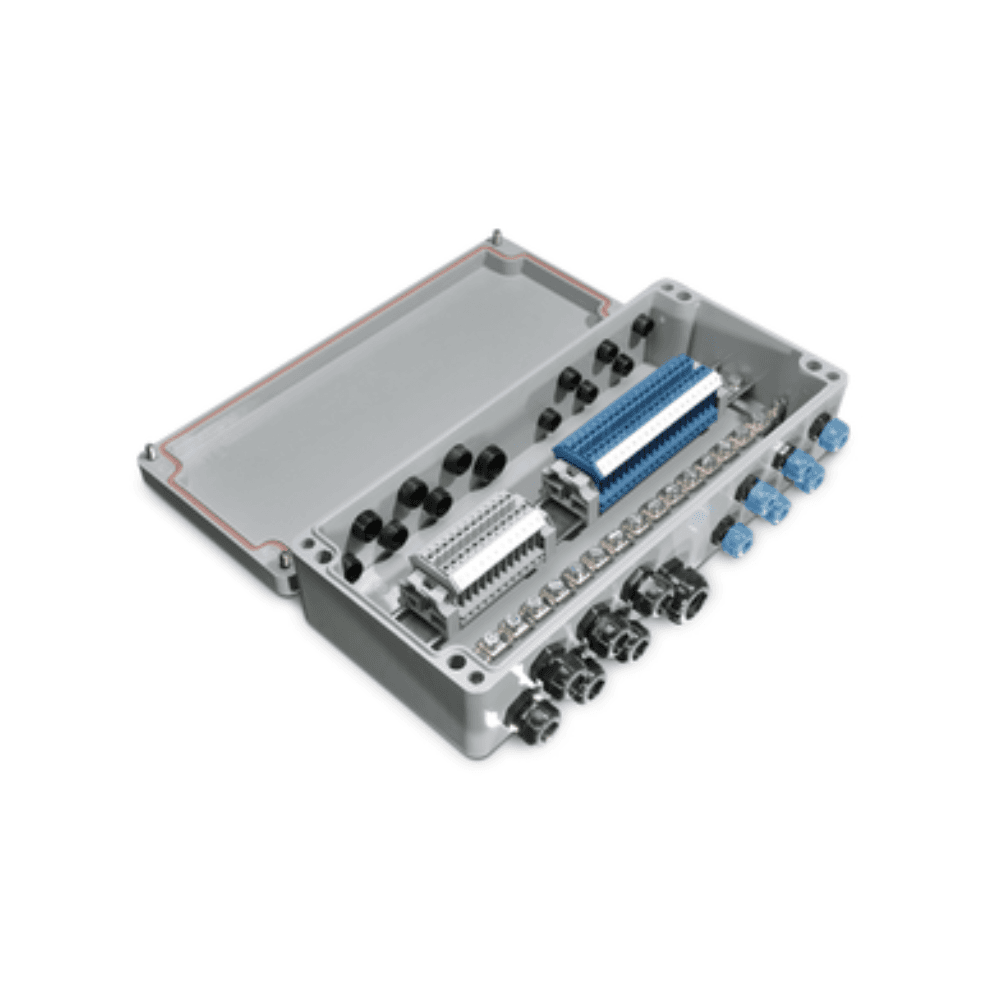

GBAEX enclosures are based on the proven GBA aluminium platform and configured for explosion-protected projects with external earthing and nameplate marking. The range supports Ex e (increased safety) and Ex i (intrinsic safety) concepts with project-specific certification scope.
The matrix includes 34 sizes from 58 x 64 x 34 mm up to 600 x 310 x 180 mm, with PDF drawings and 3D STEP models available for engineering.
Weight
150 to 12000 g
Material
Aluminium AlSi12
Color
RAL7001, special colours on request
Size Range
58 x 64 x 34 to 600 x 310 x 180 mm
HS Code
7606.99.90.19
Special Options
Ex e / Ex i, U/K versions
TECHNICAL DATASHEET Additional Information
Material Composition
Aluminium platform based on GBA
Protection
Ex-oriented construction for hazardous area projects
Surface
Powder Coated (structured, silky & shiny)
Primary Use Case
Explosion-protected machine and process areas
Operating Temperature
According to final approved project components
Protection Rating
IP66 (DIN EN 60529)
Earthing
Yes, external earthing connection on lower part
RoHS Compliance
RoHS EU Directive 2011/65/EU
REACH Compliance
REACH Regulation 1907/2006/EC
Compatibility
Mechanical platform continuity with GBA size family (project release dependent)
| XINDUX Items | Length (mm) | Width (mm) | Height (mm) | Weight (g) | Mounting Plate | Hinges | 3D Models |
|---|---|---|---|---|---|---|---|
| GBAEX000586434 | 58 | 64 | 34 | 150 | ✖ | ✖ | Download |
| GBAEX000758057 | 75 | 80 | 57 | 350 | ✔ | ✔ | Download |
| GBAEX000986434 | 98 | 64 | 34 | 200 | ✖ | ✖ | Download |
| GBAEXA000986434 | 98 | 64 | 34 | - | ✔ | ✔ | - |
| GBAEX010010081 | 100 | 100 | 81 | 650 | ✔ | ✔ | Download |
| GBAEX012212081 | 122 | 120 | 81 | 1000 | ✔ | ✔ | Download |
| GBAEX012212090 | 122 | 120 | 90 | 1050 | ✔ | ✔ | Download |
| GBAEX001258057 | 125 | 80 | 57 | 450 | ✔ | ✔ | Download |
| GBAEX014014091 | 140 | 140 | 91 | 1350 | ✔ | ✔ | Download |
| GBAEX001506434 | 150 | 64 | 34 | 300 | ✖ | ✖ | Download |
| GBAEX016010081 | 160 | 100 | 81 | 850 | ✔ | ✔ | Download |
| GBAEX016016091 | 160 | 160 | 91 | 1600 | ✔ | ✔ | Download |
| GBAEX001758057 | 175 | 80 | 57 | 600 | ✔ | ✔ | Download |
| GBAEX180180100 | 180 | 180 | 100 | 2100 | ✔ | ✔ | Download |
| GBAEX020014090 | 200 | 140 | 90 | 1650 | ✔ | ✔ | Download |
| GBAEX200230113 | 200 | 230 | 113 | 2800 | ✔ | ✔ | Download |
| GBAEX200230180 | 200 | 230 | 180 | 4050 | ✔ | ✔ | Download |
| GBAEX022012081 | 220 | 120 | 81 | 1500 | ✔ | ✔ | Download |
| GBAEX022012091 | 220 | 120 | 91 | 1650 | ✔ | ✔ | Download |
| GBAEX002508057 | 250 | 80 | 57 | 850 | ✔ | ✔ | Download |
| GBAEX026016091 | 260 | 160 | 91 | 2300 | ✔ | ✔ | Download |
| GBAEX280180100 | 280 | 180 | 100 | 2800 | ✔ | ✔ | Download |
| GBAEX280230110 | 280 | 230 | 110 | 3350 | ✔ | ✔ | - |
| GBAEX330230111 | 330 | 230 | 111 | 3800 | ✔ | ✔ | Download |
| GBAEX330230180 | 330 | 230 | 180 | 3600 | ✔ | ✔ | Download |
| GBAEX036012080 | 360 | 120 | 80 | 2050 | ✔ | ✔ | Download |
| GBAEX036016090 | 360 | 160 | 90 | 3000 | ✔ | ✔ | Download |
| GBAEX400230110 | 400 | 230 | 110 | 5400 | ✔ | ✔ | Download |
| GBAEX400230180 | 400 | 230 | 180 | 6150 | ✔ | ✔ | Download |
| GBAEX400310110 | 400 | 310 | 110 | 7100 | ✔ | ✔ | Download |
| 7100GBAEX400310180 | 400 | 310 | 180 | 8850 | ✔ | ✔ | Download |
| GBAEX400310180 | 400 | 310 | 180 | GBAEX400310180 | ✔ | ✔ | - |
| GBAEX056016090 | 560 | 160 | 90 | 4000 | ✔ | ✔ | - |
| GBAEX600230110 | 600 | 230 | 110 | 7250 | ✔ | ✔ | - |
| GBAEX600310110 | 600 | 310 | 110 | 9250 | ✔ | ✔ | Download |
| GBAEX600310180 | 600 | 310 | 180 | 12000 | ✔ | ✔ | Download |
ACCESSORIES
FAQs
U is the Ex-certified empty housing. K is the populated Ex terminal housing with project-specific internal equipment.
34 sizes, from 58 × 64 × 34 mm up to 600 × 310 × 180 mm.
IP66 is standard for GBAEX housings.
U = Ex-certified empty housing; K = populated Ex terminal housing with project-specific internal equipment.
The range supports Ex e (increased safety) and Ex i (intrinsic safety) depending on project requirements.
Yes, GBAEX includes an external earthing connection on the lower part as part of the Ex-oriented design.
Yes, nameplate included as part of the Ex execution.
A broad Ex matrix exists, but final release depends on certification scope and selected configuration.
All attached and internal components must comply with the applicable Ex approvals for the final assembly.
Yes, K versions can be configured with terminal systems, entries, and internal arrangement according to approved project design.
Yes, matrix models are provided with PDF and STEP data for faster layout/documentation work.
150 to 12,000 g depending on model.
Model dependent, matrix indicates mounting plate and hinge availability per item.
Documentation scope and configuration follow the project approval path; XINDUX aligns the enclosure setup to the required Ex concept and certification package.
Yes, entries and internal arrangement can be defined project-wise (especially for K versions).
Zone/concept (Ex e or Ex i), U vs K, required entries/terminals, approval scope, earthing/identification needs, and any internal component constraints (approved parts only).
Yes, availability is listed as in stock (standard matrix).
Any component or entry changes must be evaluated against the Ex approvals and the approved project design before release.
The datasheet states nameplate included; additional marking/identification is typically handled within the project-specific Ex documentation/configuration scope.
Freeze the approval scope early, supply the entry layout + terminal list up front, and keep all internal components aligned with project approvals.
